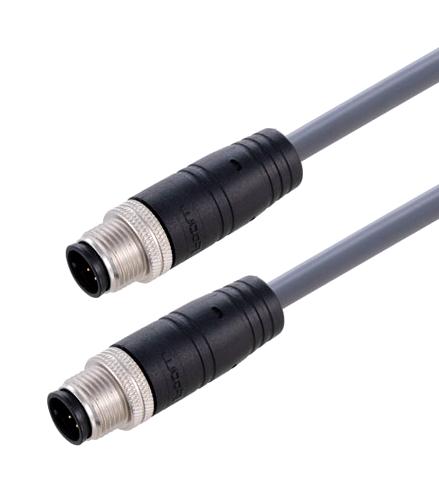

L-COM TRG881C4G1M Industrial M12 Cable Assembly
The TRG881-C4G-1M is a high-quality, unshielded M12 male-to-male cable assembly designed for industrial automation and control systems. Featuring 8 conductors with 24 AWG stranded tinned copper conductors, it offers reliable electrical performance rated at 30 V AC/DC and a maximum current of 2A. The cable has a PVC gray jacket, rated for temperatures from -25°C to +105°C, with UV and sunlight resistance, making it suitable for harsh environments. It includes a molded PVC hood, TPU insulator, and nickel-plated brass screw nuts, ensuring durability and secure connections, with an ingress protection rating of IP67 when mated.
L-COM TRG881C4G1M Industrial M12 Cable Assembly Specifications:
- Connectors: M12 male-to-male, 8-position A-coded
- Conductors: 8 x 24 AWG stranded tinned copper
- Jacket Material: PVC, gray, flame rating VW-1
- Operating Temperature Range: -25°C to +105°C
- Voltage Rating: 30 V AC/DC
- Max Current: 2A
- Ingress Protection: IP67 when mated
- Material: Molded hood: PVC, UV resistant, black; Insulator: TPU, black; Screw nuts: Brass, nickel-plated
- Cable Lengths Available: 0.5m, 1m, 2m, 3m, 5m, 10m
- Jacket Diameter: approximately 0.205 inches (5.20 mm)
Buy the L-COM TRG881-C4G-1M – Reliable M12 Cable for Industrial Applications
Order the L-COM TRG881-C4G-1M industrial M12 cable assembly online today to ensure robust, secure, and high-performance connections for automation, control, and measurement systems. Perfect for demanding environments, it features UV-resistant PVC, temperature tolerance from -25°C to +105°C, IP67 ingress protection, and high-quality materials including nickel-plated brass and molded PVC components. Available in various lengths, it simplifies installation and improves system reliability, making it an essential component for industrial control networks and automation setups.
Buy L-COM TRG881-C4G-1M now and experience unmatched reliability and performance in your industrial automation projects.
