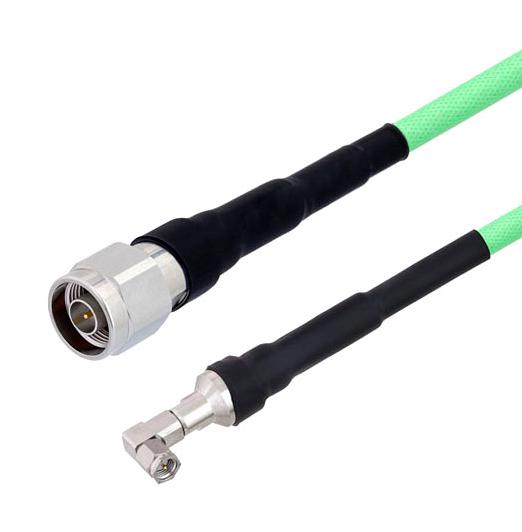

L-COM LCCA30046FT2 RF Cable Assembly
The LCCA30046-FT2 is a durable, low loss RF cable assembly featuring a male N connector and a right-angle SMA connector, using LL335i coax for optimal performance up to 18 GHz. This 2-foot flexible cable is engineered with triple shielding and a tape-wrapped PTFE dielectric for minimal insertion loss and superb shielding effectiveness over 95dB. Ideal for automated test systems, antenna testing, and laboratory environments, it is equipped with a heavy-duty heat shrink boot for enhanced durability in demanding applications, ensuring reliable connections in tight spaces and long cable runs.
L-COM LCCA30046FT2 RF Cable Assembly Specifications:
- Frequency Range: up to 18 GHz
- VSWR: 1.35:1
- Impedance: 50 Ohms
- Insertion Loss: Max 0.36 dB at 1 GHz, 0.87 dB at 18 GHz
- Shielding Effectiveness: > 95dB
- Velocity of Propagation: 83%
- Capacitance: 25 pF/ft
- Cable Type: LL335i
- Connector 1: N Male, MIL-STD-348, Gold over Nickel, Passivated Stainless Steel
- Connector 2: SMA Male Right Angle, Gold over Nickel, Passivated Stainless Steel
- Cable Length: 2 feet
- Cable Diameter: 0.3 inches
- Inner Conductor: Solid Copper, Silver Plated
- Dielectric: Tape-wrapped PTFE
- Shield Layers: Silver Plated Copper Tape, Copper Braid
- Jacket Material: FEP, Green
- Maximum Operating Temperature: -55°C to +200°C
- Repeated Minimum Bend Radius: 1.5 inches
- Weight: 0.139 lbs
- Connector Torque: 21 in-lbs
Buy the Buy INFINITG RF Cable Part Number LCCA30046-FT2 Online
Purchase the INFINITG RF Cable Assembly LCCA30046-FT2 online now to get a high-performance, durable, and flexible N male to SMA male right-angle cable. This 2-foot assembly operates up to 18 GHz, delivering excellent shielding greater than 95dB, minimized insertion loss, and exceptional reliability. The heavy-duty heat shrink boot enhances durability for demanding environments, perfect for automated test systems, antenna ranges, and laboratory applications. Enjoy same-day shipping and reliable online ordering for your critical RF projects.
Order your INFINITG SeriesLCCA30046-FT2 2-foot RF Cable Assembly today and ensure reliable, high-frequency connections for your testing and communication needs.
Frequently Asked Questions
Where can I buy L-COM LCCA30046FT2?
You can click on the BUY or RFQ button to purchase LCCA30046FT2 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30046FT2?
You can download the LCCA30046FT2 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30046FT2?
L-COM
