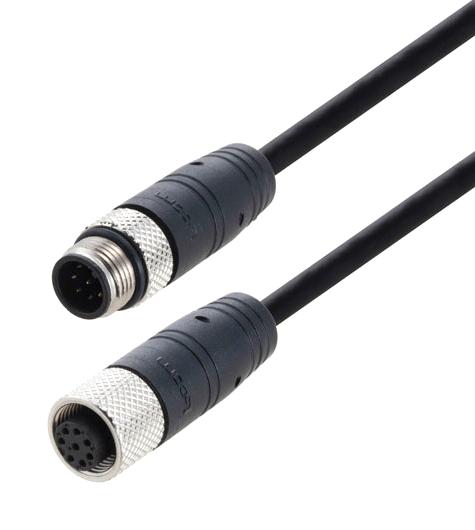

L-COM TRG884P6B1M Industrial Shielded M12 Connector
This shielded M12 connector features 8 positions with an A-code configuration, designed for industrial automation and communication systems. Constructed with a thermoplastic polyurethane hood, PBT+GF insulator, and nickel-plated brass shell and screw nut, it offers durability and安心 environmental resistance. With a nomina…
L-COM TRG884P6B1M Industrial Shielded M12 Connector Specifications:
- Material: Thermoplastic polyurethane hood, PBT+GF insulator, brass shell and screw nut
- Contact Material: Phosphor bronze, gold-plated
- Voltage Rating: 30 V AC/DC
- Max Current: 2A
- Ingress Protection Rating: IP67 (mated)
- Operating Temperature Range: -25°C to +80°C
- Cable Diameter: Nom. .205 inches (5.20 mm)
- Cable Type: 8-conductor, 26 AWG stranded tinned copper wires with aluminum/polyester foil shielding and drain wire
- Environmental Resistance: Oil, sunlight, and chemical resistant
- Flame Rating: VW-1
- Connector Type: Shielded male or female, 8-position, A-code
- Application: Industrial automation, control systems
- Dimensions: Length varies with cable length, overall diameter approximately 0.205 inches
- Manufactured to UL standards and designed for reliable, secure connections in harsh environments
Buy the L-COM Series M12 Connector: TRG884P6B1M
Purchase the durable, shielded M12 connector online today for your industrial automation projects. It features 8 positions, excellent environmental resistance, and reliable gold-plated contacts. Designed for harsh environments, this connector ensures secure and stable connections. Easy to install, it is ideal for control systems and communication networks requiring IP67 ingress protection. Order now and benefit from fast shipping, quality assurance, and technical support to meet your automation needs efficiently.
Get L-COM TRG884P6B1M today—built for industrial automation and long-lasting durability.
