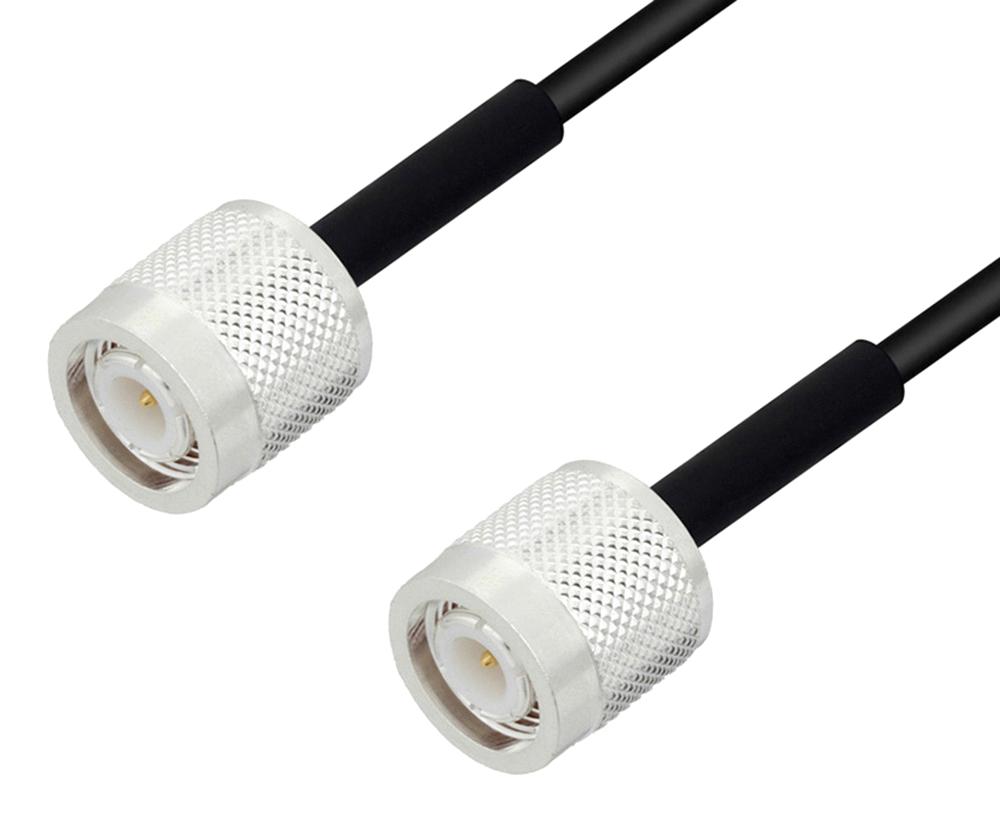

L-COM LCCA30152FT4 RF Cable Assembly
L-com’s LCCA30152-FT4 is a low loss TNC male to TNC male cable assembly utilizing LMR-100 coax, 4 FT length, with Times Microwave components. It features a PVC jacket, operates up to 5.8 GHz, and provides shielding greater than 90dB for reliable performance in mobile radio, Wi-Fi, cellular, and antenna applications. The flexible design with double shielding ensures minimal signal loss, excellent shielding effectiveness, and durability for indoor and outdoor use, making it ideal for communication systems requiring high frequency, low loss, and flexible RF cabling solutions.
L-COM LCCA30152FT4 RF Cable Assembly Specifications:
- Frequency Range: DC to 5.8 GHz
- Velocity of Propagation: 66%
- Insertion Loss (Typ.): 0.66 dB at 0.25 GHz, 1.16 dB at 1 GHz, 1.79 dB at 2.45 GHz, 2.76 dB at 5.8 GHz
- Shielding Effectiveness: > 90 dB
- Impedance: 50 Ohms
- Cable Length: 4 FT (1.219 meters)
- Cable Diameter: 0.6 inches (15.24 mm)
- Inner Conductor: Copper Clad Steel, Gold Plated
- Dielectric: PE (Polyethylene)
- Connector Type: TNC Male to TNC Male
- Maximum Bend Radius: 1 inch
- Weight: 0.198 lbs (89.81 g)
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -70°C to +85°C
- Shield Layers: Aluminum Tape, Tinned Copper Braid
- Jacket Material: PVC (Black)
- Jacket Diameter: 0.11 inches (2.79 mm)
Buy the Cor GLOBAL CONNECTIVITY SOLUTIONS LCCA30152-FT4 – Reliable RF Cable for Industrial Applications
Order the Cor LCCA30152-FT4 Low Loss TNC Male to TNC Male Cable Assembly online today. This 4-foot flexible RF cable featuring LMR-100 coax ensures minimal signal loss, excellent shielding >90dB, and high durability. Perfect for cellular, Wi-Fi, radio, and antenna systems, its robust construction supports high-frequency applications up to 5.8 GHz. Enjoy same-day shipping and customize options, including connector orientation and labeling, ensuring optimal performance for your communication needs. Trust in quality and reliability for your critical projects.
Buy Cor GLOBAL CONNECTIVITY SOLUTIONS LCCA30152-FT4 now and experience unmatched reliability and performance with high-frequency low loss coaxial cable.
