L-COM LCCA30153FT2 RF Cable Assembly
L-com’s LCCA30153-FT2 is a 2-foot low loss N male to N male cable assembly utilizing LMR-195 coaxial cable with Times Microwave components. Designed for high-frequency applications up to 5.8 GHz, it features a PE jacket, double shielding with aluminum tape and tinned copper braid, and a flexible design suitable for installations requiring frequent bending. The assembly offers low insertion loss, > 90 dB shielding, and a bend radius of 2 inches, making it ideal for radio, Wi-Fi, antenna, and lab applications. Same-day shipping available.
L-COM LCCA30153FT2 RF Cable Assembly Specifications:
- Frequency Range: 5.8 GHz
- Velocity of Propagation: 80%
- RF Shielding: > 90 dB
- Group Delay: 1.27 ns/ft
- Capacitance: 25.4 pF/ft
- Inductance: 0.064 uH/ft
- DC Resistance Inner Conductor: 7.6 Ohms/1000 ft
- DC Resistance Outer Conductor: 4.9 Ohms/1000 ft
- Jacket Material: PE
- Jacket Diameter: 0.195 in
- Connectors: N Male to N Male
- Impedance: 50 Ohms
- Inner Conductor: Solid Copper
- Dielectric: PE (F)
- Shield Layers: Aluminum Tape and Tinned Copper Braid
- Cable Length: 2 ft
- Diameter: 0.196 in
- Temperature Range Operating: -40 to +85°C
- Storage Temperature: -70 to +85°C
- Minimum Bend Radius: 0.5 in
- Maximum Bend Radius: 2 in

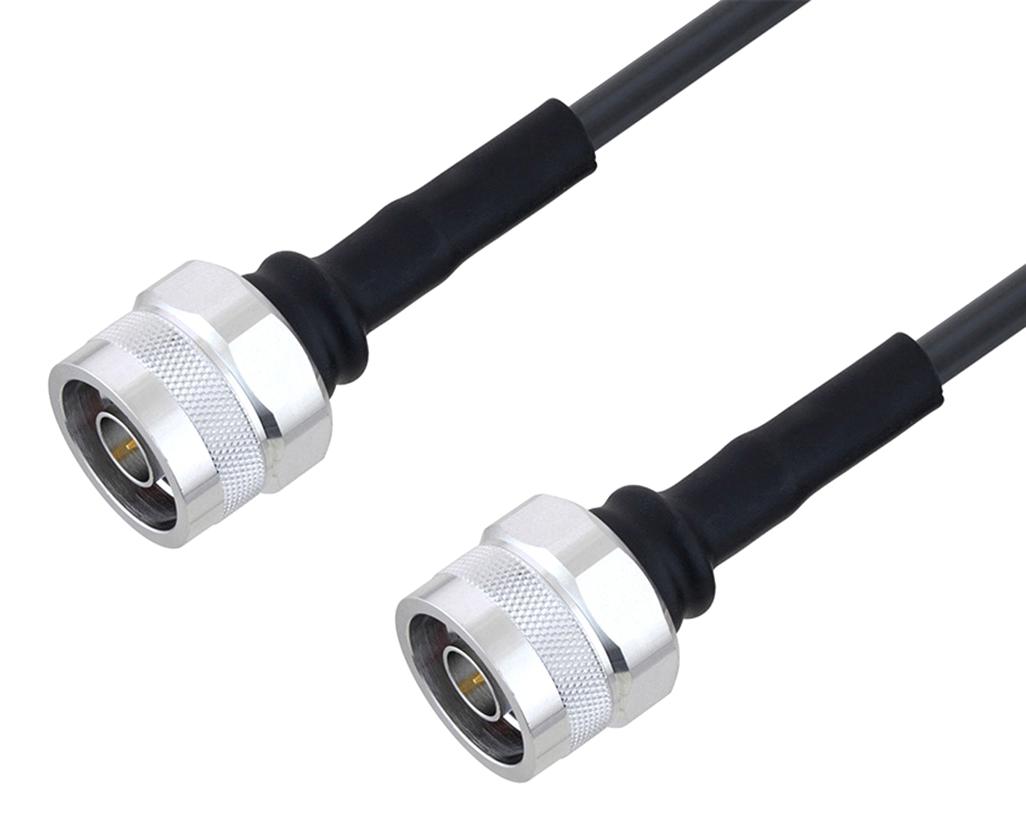

Buy the Buy INFINITG N Male to N Male Cable Part Number LCCA30153FT2 Online
Purchase the INFINITG LCCA30153-FT2 high-quality N male to N male cable assembly today. This 2-foot RF cable, utilizing LMR-195 coax and Times Microwave components, offers excellent low loss performance up to 5.8 GHz. Its flexible design with double shielding ensures superior signal integrity, making it ideal for Wi-Fi, cellular, antenna, and laboratory applications. Same-day shipping guarantees quick delivery to meet your project timelines. Experience reliable connection quality for demanding communications systems, with easy ordering and excellent support from INFINITG.
Order your INFINITG Series LCCA30153-FT2 low-loss N male to N male cable today and ensure reliable high-frequency connections for your RF projects.
Frequently Asked Questions
Where can I buy L-COM LCCA30153FT2?
You can click on the BUY or RFQ button to purchase LCCA30153FT2 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30153FT2?
You can download the LCCA30153FT2 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30153FT2?
L-COM
