L-COM LCCA30154FT4 RF Cable Assembly

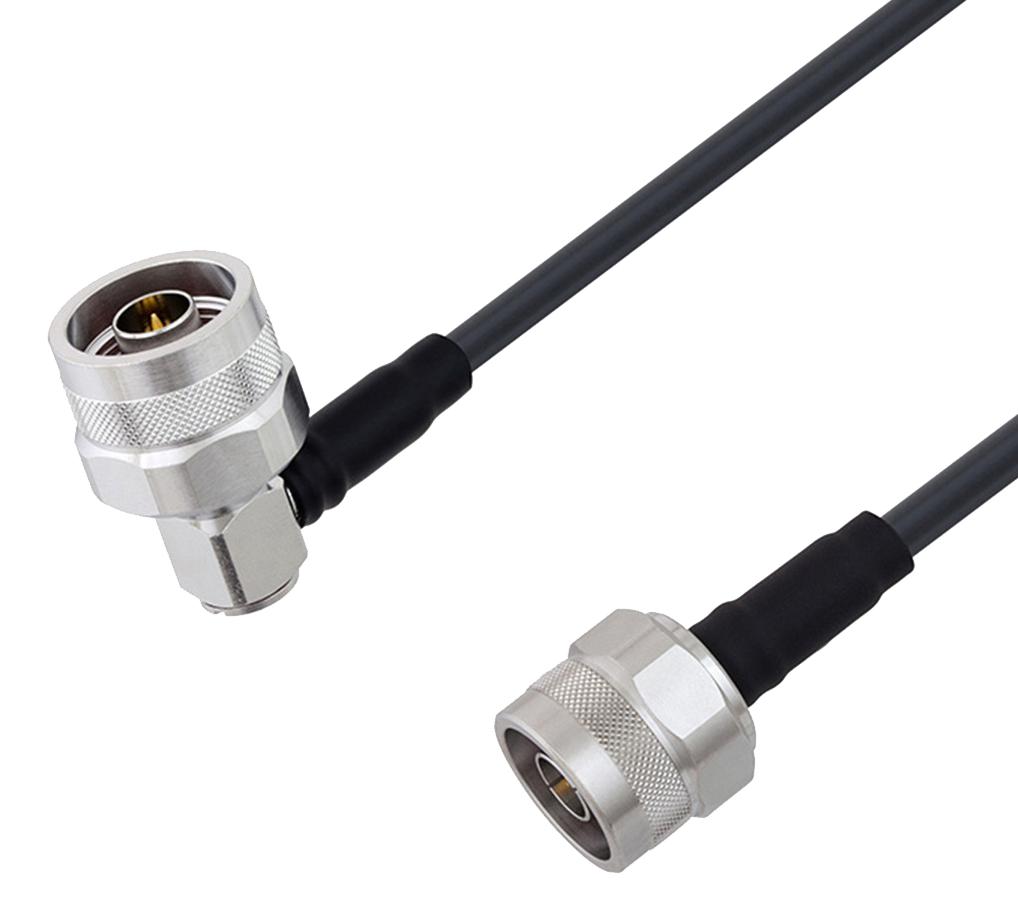

L-com’s LCCA30154-FT4 is a low loss N male right angle to N male cable assembly using LMR-195 coax, 4 FT with Times Microwave components. It features a PE dielectric, operating to 5.8 GHz, with very low insertion loss and shielding effectiveness over 90 dB due to layered tinned copper braid over aluminum tape. The right angle connector design simplifies connections in tight spaces, ideal for radio, Wi-Fi, cellular, and antenna applications. Same-day shipping enhances reliability for diverse RF communications and laboratory setups.
L-COM LCCA30154FT4 RF Cable Assembly Specifications:
- Frequency Range: DC to 5.8 GHz
- Insertion Loss: 0.52 dB at 0.25 GHz, 0.76 dB at 25 GHz
- VSWR: 1.49 Max
- Velocity of Propagation: 80%
- RF Shielding: >90 dB
- Impedance: 50 Ohms
- Connector Type: N Male Right Angle to N Male
- Cable Length: 4 FT
- Cable Type: LMR-195 coaxial cable
- Inner Conductor: Solid copper, gold plated
- Dielectric: PE (F)
- Shield Layers: Aluminum tape, tinned copper braid
- Outer Diameter: 0.195 in (4.95 mm)
- Bend Radius: 2 inches minimum
- Temperature Range: -40°C to +85°C
- Maximum Power: 3000 Vrms
- Mating Cycles: 500
- Connector Material: Brass, gold plated
- Jacket Material: Black PE
- Tensile Strength: 40 lbs
- Operational Frequency: up to 5.8 GHz
- Shield Effectiveness: >90 dB
Buy the Buy INFINITG Low Loss N Male Right Angle to N Male Cable Assembly Part Number LCCA30154FT4 Online
Order the INFINITG LCCA30154-FT4 low-loss N male right angle to N male RF cable assembly online today. With 4 feet of high-quality LMR-195 coax, shielding >90 dB, and operation up to 5.8 GHz, it offers superior performance for cellular, Wi-Fi, antenna, and communication systems. Same-day shipping ensures quick deployment for RF systems requiring flexible, reliable connections. Ideal for laboratory, land mobile radio, and high-frequency applications, this assembly combines durability, shielding effectiveness, and ease of installation to meet diverse professional needs.
Buy INFINITG LCCA30154-FT4 now and experience unmatched reliability, low loss performance, and easy installation in tight RF applications.
Frequently Asked Questions
Where can I buy L-COM LCCA30154FT4?
You can click on the BUY or RFQ button to purchase LCCA30154FT4 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30154FT4?
You can download the LCCA30154FT4 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30154FT4?
L-COM
