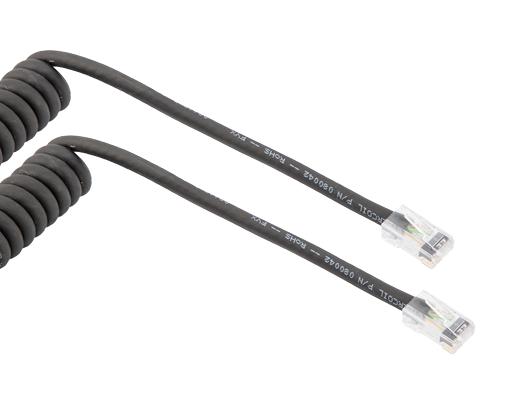

L-COM TRD815CH618F Telecom Cable
This is high-quality, flexible telecom cable composed of 26 AWG stranded tinned copper conductors with high-density polyethylene insulation. The cable features four twisted pairs, each color-coded and twisted into pairs for reduced crosstalk. The black polyurethane jacket provides durable, pressure-resistant protection with a nominal wall thickness of .040 inches. It is suitable for industrial, telecom, and modular applications, with a maximum temperature rating of 60°C and a maximum voltage rating of 300V. The cable's overall diameter is approximately .240 inches, making it ideal for structured wiring, networking, and data transmission projects.
L-COM TRD815CH618F Telecom Cable Specifications:
- Conductor: 26 AWG stranded tinned copper
- Insulation: High-density polyethylene, .008 inch wall thickness, .0365 inch max
- Pairs: 4 twisted pairs, color-coded
- Jacket: Polyurethane, black, .040 inch wall thickness
- Overall diameter: approximately .240 inches
- Temperature rating: Max 60°C, Min -20°C
- Voltage rating: Up to 300V
- D.C. Resistance: Max 42.6 Ohm/1000 ft
- Construction: Conductors twisted into pairs with tissue tape separator
- Cable length options: 0.5 ft, 1 ft, 3 ft, 6 ft, 9 ft, 12 ft, 15 ft, 18 ft, 21 ft, 24 ft
- Color coding: White/Blue, White/Orange, White/Green, White/Brown
- Application: Telecom, modular, structured wiring
Buy the Lom TRD815CH618F – Reliable Telecom Cable for Industrial Applications
Order the Lom TRD815CH618F telecom cable online today and experience exceptional reliability, durable polyurethane insulation, and optimal flexibility. Perfect for industrial and networking applications, this high-quality cable features twisted pairs with color coding, a sturdy black jacket, and a 300V voltage rating. Whether you need 1 foot or longer runs, our convenient online ordering ensures quick delivery for your projects. Enhance your wiring setup with this proven, industry-standard cable designed for maximum durability and performance in demanding environments.
Buy Lom TRD815CH618F now and enjoy high flexibility and robust performance for your telecom and industrial wiring needs.
Frequently Asked Questions
Where can I buy L-COM TRD815CH618F?
You can click on the BUY or RFQ button to purchase TRD815CH618F from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part TRD815CH618F?
You can download the TRD815CH618F datasheet or visit the L-COM website for support.
Who is the manufacturer of TRD815CH618F?
L-COM
