L-COM LCCA30155FT10 Low Loss RF Cable

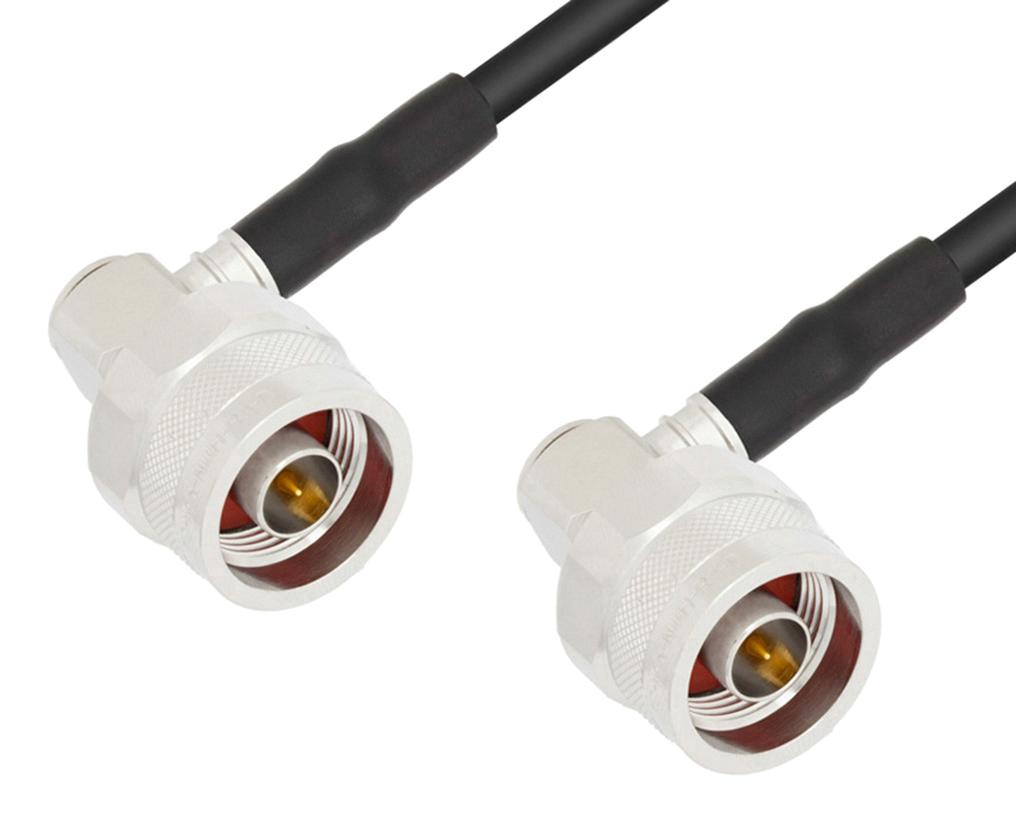

The L-com LCCA30155-FT10 is a high-performance, low-loss N male right angle to N male right angle cable assembly made with LMR-195 coaxial cable and Times Microwave Components. It features a 10 ft length, solid copper inner conductor, PE dielectric, and double shielding with aluminum tape and tinned copper braid. Operating up to 5.8 GHz, it offers excellent shielding effectiveness over 90 dB, low insertion loss, and a durable design suitable for radio, Wi-Fi, cellular, and antenna applications. The assembly ensures reliable, flexible connections in tight spaces with a 50 Ohm impedance and robust environmental resistance.
L-COM LCCA30155FT10 Low Loss RF Cable Specifications:
- Frequency Range: Dc to 5.8 GHz
- Impedance: 50 Ohms
- Insertion Loss (Typ.) at 1 GHz: 1.21 dB
- Shielding Effectiveness: > 90 dB
- Velocity of Propagation: 80%
- Capacitance: 25.4 pF/ft
- Inductance: 0.064 uH/ft
- DC Resistance Inner Conductor: 7.6 Ohms/1000ft
- DC Resistance Outer Conductor: 4.9 Ohms/1000ft
- Cable Length: 10 ft
- Diameter: 0.8 in
- Jacket Material: PE (F), Black
- Connector Type: N Male Right Angle
- Connector Material: Brass, Gold Plated
- Connector Impedance: 50 Ohms
- Mating Cycles: 500
- Temperature Range: -40°C to +85°C
- Bend Radius: 2 inches
- Shield Layers: Aluminum Tape and Tinned Copper Braid
- Weight: 0.209 lbs
- Materials: Copper, Brass, Teflon dielectric
Buy the Cor GLOBAL CONNECTIVITY SOLUTIONS LCCA30155-FT10 – Reliable RF Cable Assemblies for Industrial Applications
Purchase the Cor GLOBAL CONNECTIVITY SOLUTIONS LCCA30155-FT10 now for high-quality, low-loss RF cable assembly designed for demanding industrial and communication applications. Featuring LMR-195 coaxial cable, this 10-foot right angle N male to N male connector assembly offers excellent shielding effectiveness exceeding 90 dB, minimal insertion loss at up to 5.8 GHz, and durable construction with a PE jacket suitable for flexible deployment. Ideal for antenna, Wi-Fi, cellular, and land mobile radio systems, this assembly ensures reliable, efficient connections in tight spaces. Order online today and enjoy fast shipping and excellent performance.
Get Cor GLOBAL CONNECTIVITY SOLUTIONS LCCA30155-FT10 today—built for precision and long-lasting durability in RF and communication systems.
Frequently Asked Questions
Where can I buy L-COM LCCA30155FT10?
You can click on the BUY or RFQ button to purchase LCCA30155FT10 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30155FT10?
You can download the LCCA30155FT10 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30155FT10?
L-COM
