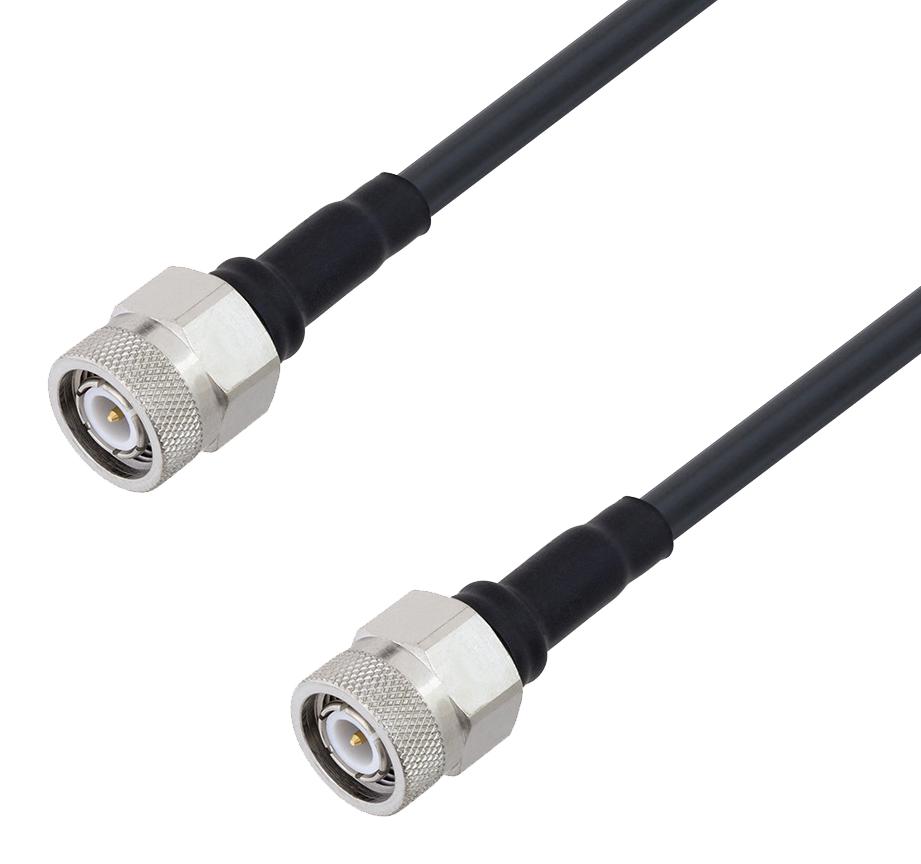

L-COM LCCA30157FT2 TNC Cable Assembly
L-com’s LCCA30157-FT2 is a low loss TNC male to TNC male cable assembly using LMR-195 coax, 2 ft length with Times Microwave components. Operating up to 5.8 GHz, it features a PE jacket for flexibility, low insertion loss, and superior shielding effectiveness over 90 dB through layered tinned copper braid and aluminum tape. Ideal for RF applications including land mobile radio, cellular, Wi-Fi, and antenna installations, this assembly provides reliable performance, excellent shielding, and durability in flexible configurations.
L-COM LCCA30157FT2 TNC Cable Assembly Specifications:
- Frequency Range: 5.8 GHz
- Velocity of Propagation: 80%
- RF Shielding: > 90 dB
- Group Delay: 1.27 ns/ft
- Capacitance: 25.4 pF/ft
- Inductance: 0.064 uH/ft
- DC Resistance Inner Conductor: 7.6 Ohms/1000 ft
- DC Resistance Outer Conductor: 4.9 Ohms/1000 ft
- Jacket Material: PE, Black
- Jacket Diameter: 0.195 in
- Minimum Bend Radius: 0.5 in
- Connector Type: TNC Male to TNC Male
- Impedance: 50 Ohms
- Inner Conductor: Solid Copper, Gold Plated
- Dielectric: Teflon
- Environmental Operating Range: -40°C to +85°C
Buy the Buy INFINITG TNC Male to TNC Male Cable Part Number LCCA30157FT2 Online
Get your INFINITG TNC Male to TNC Male Cable assembly, featuring LMR-195 coax, 2 ft length, high shielding effectiveness, and performance up to 5.8 GHz. Perfect for RF applications like land mobile radio, cellular, Wi-Fi, and antenna setups. This low-loss cable offers excellent durability, flexibility, and superior electrical performance, ensuring reliable signal transmission and minimal interference in demanding environments. Shop online now for fast shipping and trusted quality for all your communication projects.
Order your INFINITG LCCA30157-FT2 lightweight RF cable assembly today and enhance your communication systems with reliable, flexible, low loss performance.
Frequently Asked Questions
Where can I buy L-COM LCCA30157FT2?
You can click on the BUY or RFQ button to purchase LCCA30157FT2 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30157FT2?
You can download the LCCA30157FT2 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30157FT2?
L-COM
