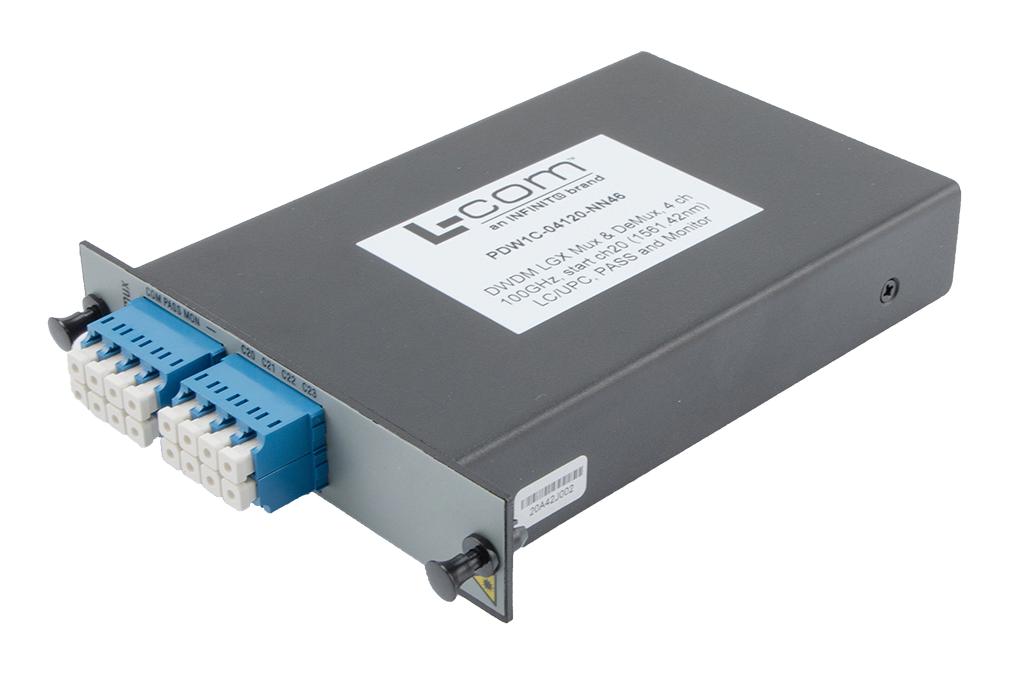

L-COM PDW1C04120NN46 DWDM Filter Module
This LGX filter module features combined multiplexing and demultiplexing functionality with four DWDM channels, starting from channel 20 at 1561.42 nm with 100 GHz spacing. It includes LC/UPC connectors and offers a monitor port option on both the multiplexer and demultiplexer. Designed for single-mode fibre applications, it supports dual fibre setups with one transmitting multiplexed signals and the other receiving a composite signal for demultiplexing. The module has an express channel feature that allows passing all DWDM channels not present on the filter, enabling easy scalability. Suitable for side-by-side multiplexing and demultiplexing functions in inside plant (ISP) metro transport applications, it is an LGX cassette ideal for network upgrades and flexible deployment.
L-COM PDW1C04120NN46 DWDM Filter Module Specifications:
- Connector Type: LC/UPC
- Number of Channels: 4
- Module Function: Mux/DeMux
- Filter Type: DWDM
- Operating Wavelength: 1527.22 to 1564.68 nm
- Pass Port Wavelength: 1527.22 to 1564.68 nm
- Pass Port Insertion Loss: 2 dB
- Pass Port Isolation: 12 dB
- Pass Band: 0.68 to 0.93 nm
- Pass Band Ripple: 0.5 dB
- Center Wavelength (Channel): 1558.98 to 1561.42 nm
- Channel Spacing: 0.83 nm
- Channel Insertion Loss: 25 dB
- Return Loss: 45 dB
- Directivity: 50 dB
- PDL: 0.25 dB
- PMD: 0.2 Ps
- Power Handling: 300 mW
- Adjacent Channel Isolation: 28 dB
- Non-Adjacent Channel Isolation: 40 dB
- Channel to Monitor Port IL: 25 dB
- COM to Monitor Port IL: 23 dB
- IL Thermal Stability: 0.005 dB/°C
- Wavelength Thermal Stability: 0.002 nm/°C
- Operating Temperature Range: -20 to +65°C
- Storage Temperature Range: -40 to +85°C
- Humidity: 5-95% RH
Buy the Buy Infinite Electronics DWDM Filter Part Number PDW1C04120NN46 Online
Purchase the DWDM filter module online to ensure high-quality multiplexing and demultiplexing with four channels at 1561.42 nm. Designed for single-mode fibre, it features LC/UPC connectors, dual fiber operation, and an express pass channel for scalability. Perfect for metro, inside plant, and regional distribution networks, this module supports 0.83 nm channel spacing, high isolation, and thermal stability. Same-day shipping and expert support make it easy to upgrade your fiber optic infrastructure swiftly and efficiently.
Buy Infinite Electronics PDW1C04120NN46 now and experience reliable multi-channel DWDM filtering for scalable fiber optic networks.
