L-COM LCCA30158FT10 RF Cable Assembly
L-com’s LCCA30158-FT10 is a low loss N male to N male cable assembly utilizing LMR-195-FR coax, measuring 10 feet in length. It features Times Microwave components and ships the same day. The cable employs PE dielectric with a 76% Velocity of Propagation, offering very low insertion loss up to 5.8 GHz, with shielding greater than 90 dB. Its flexible design and double shielding make it ideal for land mobile radio, cellular, Wi-Fi, and antenna installations, ensuring high performance and durability in various communication systems.
L-COM LCCA30158FT10 RF Cable Assembly Specifications:
- Frequency Range: 0.25 to 5.8 GHz
- Velocity of Propagation: 76 %
- RF Shielding: >90 dB
- Insertion Loss: 0.77 dB at 0.25 GHz, 3.19 dB at 5.8 GHz
- Impedance: 50 Ohms
- Cable Length: 10 ft
- Cable Diameter: 0.81 in [20.57 mm]
- Inner Conductor Material: Copper, Solid
- Connector Type: N Male to N Male
- Jacket Material: FRPE Black
- Bend Radius: 2 inches
- Temperature Range: -40°C to +85°C
- Minimum Bend Radius: 0.5 inch
- Connector Material: Brass, Gold Plated
- Shielding Layers: Tinned Copper Braid over Aluminum Tape

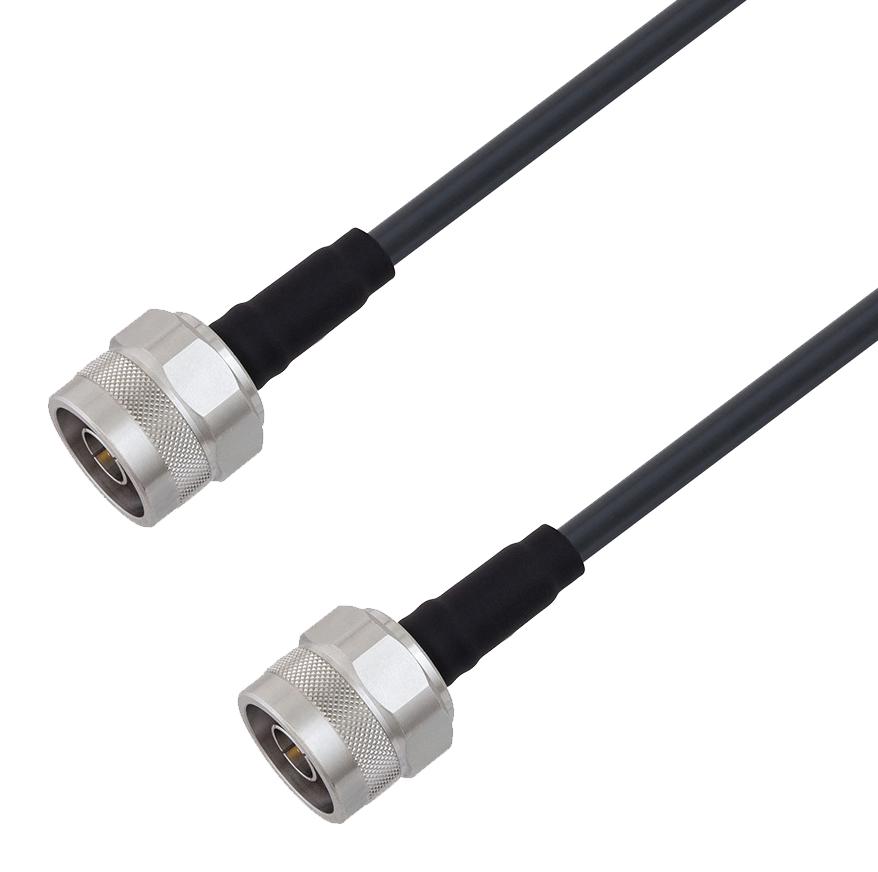

Buy the Buy INFINITG Low Loss N Male to N Male Cable Part Number LCCA30158-FT10 Online
Purchase the INFINITG series LCCA30158-FT10 low loss N male to N male cable assembly online. This 10-foot flexible coaxial cable features LMR-195-FR coax with PE dielectric, shielding >90 dB, and operates up to 5.8 GHz. Its durable construction includes brass connectors with gold plating and dual shielding for high isolation and minimal signal loss. This cable is ideal for land mobile radio, cellular, Wi-Fi, and antenna applications. Same-day shipping ensures quick delivery for your communication needs, backed by quality and reliability.
Order your INFINITG series LCCA30158-FT10 low loss N male to N male cable today and enhance your wireless and radio communication systems with reliable, high-performance connectivity.
Frequently Asked Questions
Where can I buy L-COM LCCA30158FT10?
You can click on the BUY or RFQ button to purchase LCCA30158FT10 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30158FT10?
You can download the LCCA30158FT10 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30158FT10?
L-COM
