L-COM LCCA30009FT5 RF Coaxial Cable
L-com's Cable Assembly LCCA30009 is an SMA male to N female bulkhead cable, 5.0 ft long, using 402SS Series coax with a heavy-duty boot. Designed for high-frequency applications up to 18 GHz, it features a flexible, durable construction with double shielding, including a silver-plated copper braid over a spiral strip, providing shielding effectiveness over 110dB. The assembly includes precision stainless steel connectors, a FEP jacket for environmental protection, and is ideal for flexible RF interconnects, laboratory, and automated test systems. Its rugged design ensures reliable, high-performance connections in demanding environments.
L-COM LCCA30009FT5 RF Coaxial Cable Specifications:
- Frequency Range: DC to 18 GHz
- Impedance: 50 Ohms
- Insertion Loss: Max 1.324 dB at 18 GHz
- Velocity of Propagation: 70%
- Shielding Effectiveness: > 110dB
- Capacitance: 29.4 pF/ft
- Operating Voltage: 500 Vrms
- Cable Type: 402SS Series coaxial cable
- Connector 1: SMA Male, Brass, Gold-plated, MIL-STD-348A
- Connector 2: N Female Bulkhead, Brass, Nickel-plated, MIL-STD-348A
- Connector Torque: 12 in-Ibs (1.36 Nm)
- Jacket Material: FEP, Tan
- Jacket Diameter: 0.163 in (4.14 mm)
- Cable Length: 60 inches (5 ft)
- Cable Diameter: 0.315 in (8 mm)
- Weight: 0.3 lbs (136 g)
- Repeated Minimum Bend Radius: 1 in (25.4 mm)
- Connector Material: Brass, Silver-plated
- Temperature Range: -55°C to +165°C
- Heavy Duty Heat Shrink Strain Relief Boot

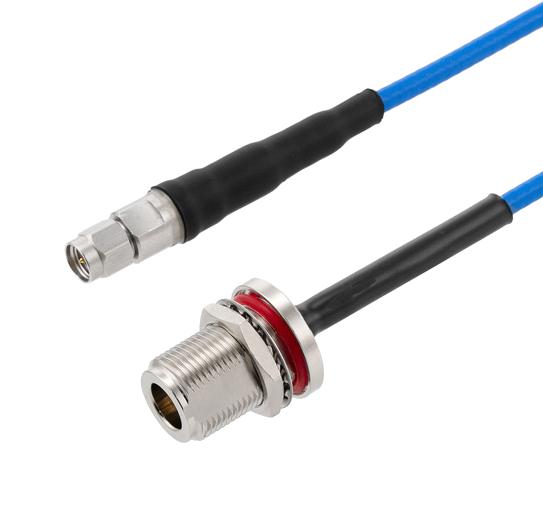

Buy the Buy INFINITG SMA Male to N Female Bulkhead Cable Part Number LCCA30009FT5 Online
Order the INFINITG RF coaxial cable with SMA to N bulkhead connectors today. This 5 ft high-performance cable supports frequencies up to 18 GHz, featuring heavy-duty shielding over 110dB for excellent signal integrity. Its durable construction includes stainless steel connectors, a FEP jacket, and robust strain relief with heat shrink booting, ensuring long-lasting performance. Perfect for laboratory testing, automated systems, and external enclosures, this flexible, high-quality RF cable guarantees reliable and precise connections in demanding environments.
Buy INFINITG LCCA30009FT5 now and experience unmatched reliability and high-frequency performance for your RF deployment needs.
Frequently Asked Questions
Where can I buy L-COM LCCA30009FT5?
You can click on the BUY or RFQ button to purchase LCCA30009FT5 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30009FT5?
You can download the LCCA30009FT5 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30009FT5?
L-COM
