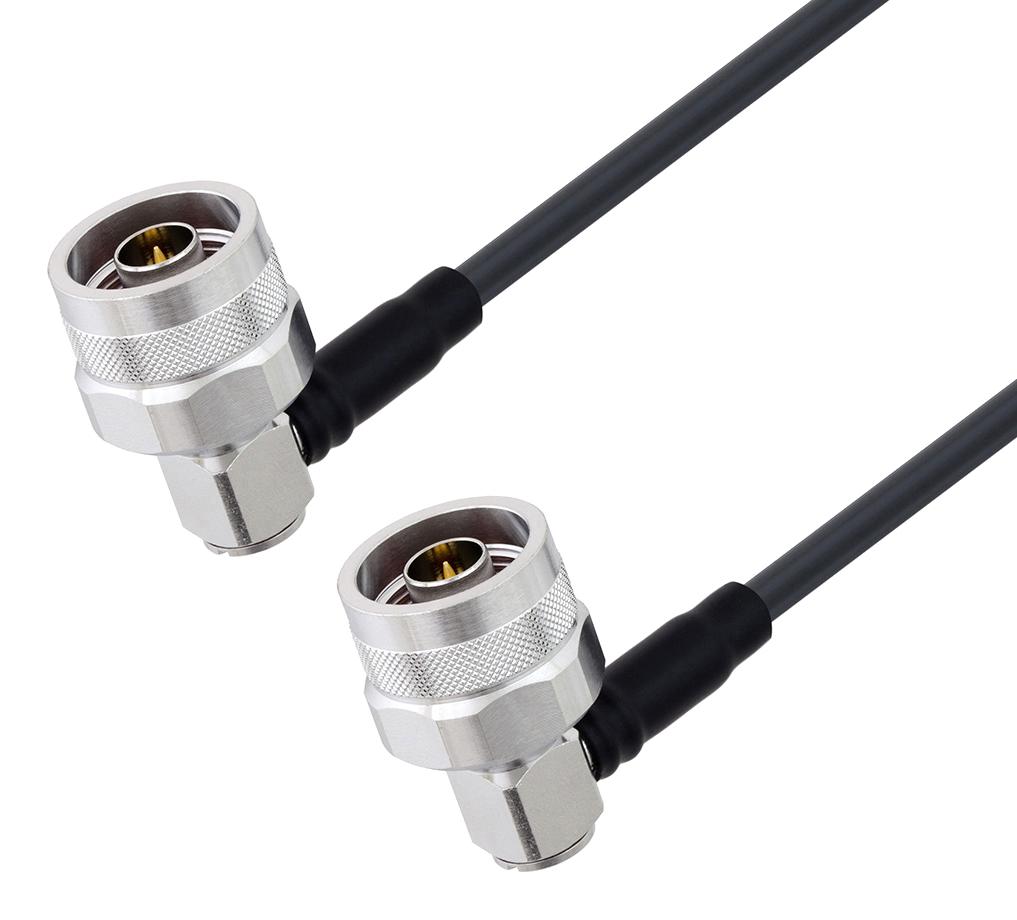

L-COM LCCA30160FT10 N Male RF Cable Assembly
The L-com LCCA30160-FT10 is a high-quality, low-loss N male right angle to N male right angle cable assembly designed for RF and microwave applications. Made with flexible LMR-195-FR coaxial cable, it features Tinned Copper Braid shielding for superior performance and operates up to 5.8 GHz. With 50 Ohm impedance, it ensures minimal insertion loss and high shielding effectiveness over 10 feet length, ideal for land mobile radio, cellular, Wi-Fi systems, antenna installations, and laboratory testing in demanding environments. Its durable construction supports repeated Flexure and secure connections in tight spaces.
L-COM LCCA30160FT10 N Male RF Cable Assembly Specifications:
- Cable Type: LMR-195-FR
- Impedance: 50 Ohms
- Length: 120 inches (10 feet)
- Diameter: 0.8 inches (20.32 mm)
- Weight: 0.21 lbs (95.25 g)
- Connector 1: N Male Right Angle
- Connector 2: N Male Right Angle
- Maximum Frequency: 5.8 GHz
- Voltage Rating: 3,000 Vrms
- Shielding Layers: Aluminum Tape and Tinned Copper Braid
- Inner Conductor: Solid Copper
- Dielectric: PE
- Minimum Bend Radius: 2 inches
- Operating Temperature Range: -40 to +85°C
- Durability: 500 mating cycles
- Connector Material: Brass, Gold plated
- Outer Jacket Material: FRPE
- Bending Moment: 0.2 Ibs-ft
Buy the Buy INFINITG Low Loss N Male Right Angle Part Number LCCA30160-FT10 Online
Purchase the INFINITG LCCA30160-FT10 black 10-foot N male right angle to N male right angle cable assembly today. Designed with LMR-195-FR coax and Times Microwave components, it ensures low insertion loss and high shielding effectiveness above 90 dB. Perfect for land mobile radio, cellular, Wi-Fi systems, and antenna setups, this durable and flexible RF cable assembly supports reliable performance in tight spaces and demanding environments. Same-day shipping available for quick deployment.
Buy INFINITG LCCA30160-FT10 now and experience unmatched reliability and performance with this high-quality RF cable assembly for demanding applications.
