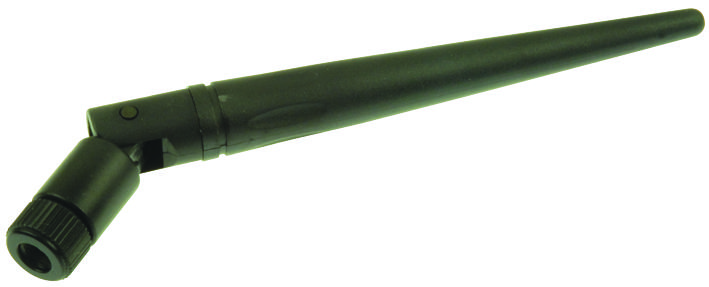

L-COM HG2403RDRSF Wireless Rubber Duck Antenna
The HG2403RD-RSF is a compact, 2.4 GHz omni-directional 'rubber duck' antenna offering broad coverage and a 3 dBi gain. Featuring a coaxial sleeve design with an omnidirectional radiation pattern, it is ideal for IEEE 802.11b/g wireless LAN and other WiFi applications. The antenna measures only 5.4 inches in length and includes a tilt-and-swivel connector, allowing flexible installation at various angles. It serves as a replacement antenna for many access points and radios equipped with detachable antennas. This versatile antenna is suitable for wireless networking, computers, consumer electronics, RF communications, and video systems.
L-COM HG2403RDRSF Wireless Rubber Duck Antenna Specifications:
- Frequency: 2400-2500 MHz
- Gain: 3 dBi
- Impedance: 50 Ohm
- VSWR: < 2.0
- Polarization: Vertical
- Connector: Reverse Polarity SMA Plug
- Weight: 0.81 oz (23 g)
- Length: 5.4 in. (137 mm)
- Diameter: 0.5 in. (13 mm)
- Finish: Matte Black
- Operating Temperature: -40°C to 85°C (-40°F to 185°F)
- Flame Rating: UL 94HB
- RoHS Compliant
Buy the L-com HG2403RD-RSF – Reliable 2.4 GHz Antenna for Industrial Applications
Order the L-com HG2403RD-RSF today to enhance your wireless network with a reliable 2.4 GHz omni-directional antenna. This compact, flexible rubber duck antenna offers a broad 270° horizontal pattern and 3 dBi gain, making it ideal for IEEE 802.11b/g WiFi, video systems, and RF communications. Its tilt-and-swivel design allows easy installation at various angles, ensuring optimal performance. Suitable as a replacement for many access points, this durable, RoHS compliant antenna supports demanding industrial and consumer wireless applications for maximum connectivity.
Get L-com HG2403RD-RSF today—built for precision and long-lasting durability in wireless networking and RF communication systems.
Frequently Asked Questions
Where can I buy L-COM HG2403RDRSF?
You can click on the BUY or RFQ button to purchase HG2403RDRSF from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part HG2403RDRSF?
You can download the HG2403RDRSF datasheet or visit the L-COM website for support.
Who is the manufacturer of HG2403RDRSF?
L-COM
