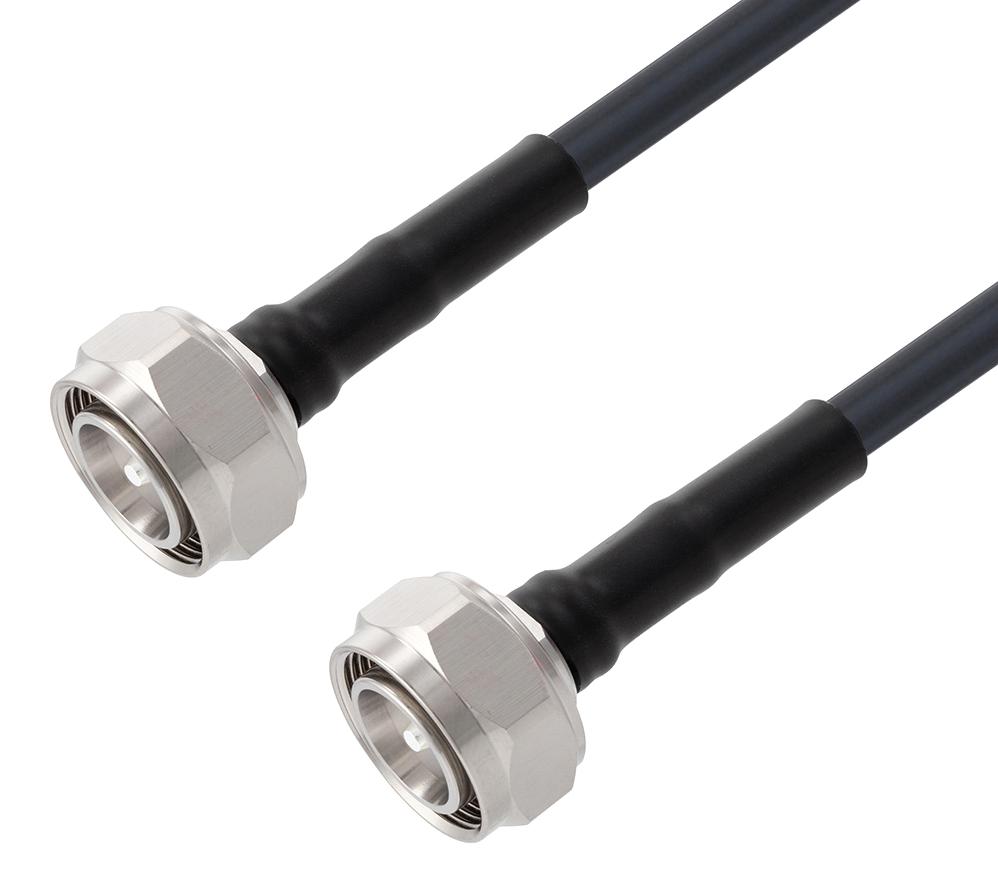

L-COM LCCA30171FT2 RF Coaxial Cable Assembly
The LCCA30171-FT2 is a flexible, low-loss RF cable assembly featuring two 4.3-10 Male connectors and 2 feet of LMR-240 coaxial cable. Designed for high-frequency applications up to 5.8 GHz, it offers exceptional shielding with effectiveness over 90 dB and low insertion loss. The cable has a PE dielectric with an 84% VoP for minimal signal loss, making it ideal for land mobile radios, cellular, Wi-Fi systems, and antenna installations. Its durable construction includes a PE jacket and tinned copper braid shield, ensuring reliable performance in demanding environments.
L-COM LCCA30171FT2 RF Coaxial Cable Assembly Specifications:
- Frequency Range: 5.8 GHz
- VSWR: 1.41
- Velocity of Propagation: 84 %
- RF Shielding: 90 dB
- Group Delay: 1.21 ns/ft
- Capacitance: 24.2 pF/ft
- Inductance: 0.06 uH/ft
- DC Resistance Inner Conductor: 3.2 Ohms/1000ft
- DC Resistance Outer Conductor: 3.89 Ohms/1000ft
- Jacket Material: PE
- Jacket Diameter: 0.24 in
- Bend Radius: 2.5 in
- Connector Type: 4.3-10 Male
- Impedance: 50 Ohms
- Cable Length: 2 ft
- Inner Conductor: Solid Copper
- Dielectric: PE (F)
- Shield Layers: Aluminum tape and Tinned copper braid
- Maximum Operating Temperature: +85°C
- Minimum Operating Temperature: -40°C
Buy the Buy INFINITG RF Cable Part Number LCCA30171-FT2 Online
Purchase the INFINITG RF coaxial cable assembly featuring two 4.3-10 male connectors and 2 feet of LMR-240 coax. With a shielding effectiveness over 90 dB and operating frequency up to 5.8 GHz, it provides low insertion loss thanks to PE dielectric and durable construction. Ideal for cellular, Wi-Fi, antenna installations, and radio systems, this flexible, high-performance cable ensures reliable signal integrity. Same-day shipping available for domestic and international orders, making it an excellent choice for professional RF applications.
Order your INFINITG SeriesLCCA30171-FT2 high-frequency coaxial cable today and ensure reliable connectivity for your RF applications with low loss performance.
Frequently Asked Questions
Where can I buy L-COM LCCA30171FT2?
You can click on the BUY or RFQ button to purchase LCCA30171FT2 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30171FT2?
You can download the LCCA30171FT2 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30171FT2?
L-COM
