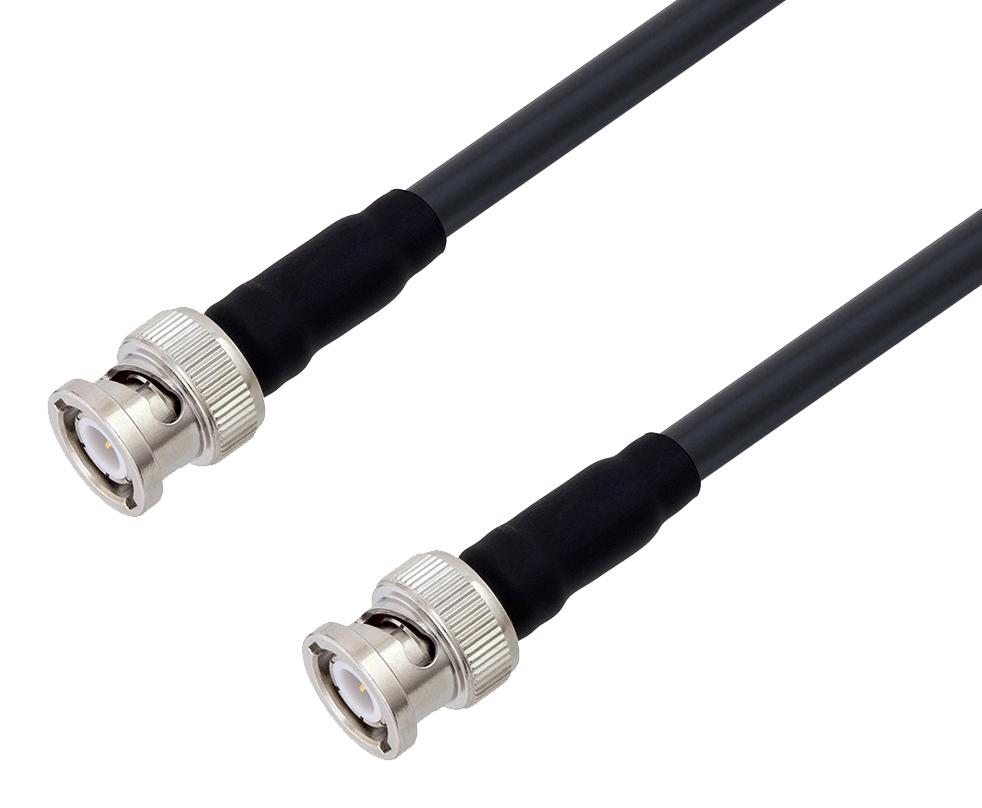

L-COM LCCA30172FT4 BNC Male to BNC Male Cable
The LCCA30172-FT4 is a low loss BNC male to BNC male cable assembly featuring LMR-240 coax, 4 feet long, with Times Microwave components. It utilizes PE dielectric with an 84% VoP, offering very low insertion loss and high shielding effectiveness over 90dB. Operating up to 5.8 GHz, it is ideal for general-purpose applications, cellular, Wi-Fi systems, land mobile radio, and antenna installations. The flexible design and durable shield layers make it suitable for environments requiring frequent bending and reliable signal transmission.
L-COM LCCA30172FT4 BNC Male to BNC Male Cable Specifications:
- Frequency Range: DC to 5.8 GHz
- Velocity of Propagation: 84%
- Insertion Loss: 0.35 dB (typical at 0.25 GHz)
- Shielding Effectiveness: >90 dB
- Impedance: 50 Ohms
- Cable Type: LMR-240 coaxial cable
- Connector Type: BNC Male to BNC Male
- Cable Length: 4 feet
- Outer Diameter: 0.24 inches (6.1 mm)
- Operating Temperature Range: -40°C to +85°C
- Bend Radius: 2.5 inches
- Maximum Power: 5,000 Vrms
- Shield Layers: Aluminum Tape and Tinned Copper Braid
- Inner Conductor: Solid Copper
- Dielectric: PE (F) material
- Certification: MIL-STD-348
- Weight: 0.056 pounds (25.4 grams)
Buy the Buy INFINITG Low Loss BNC Cable Part Number LCCA30172FT4 Online
Enhance your communication setup with the high-quality INFINITG BNC Male to BNC Male cable assembly made with premium LMR-240 coax. This 4-foot cable features superb shielding exceeding 90 dB, ensuring minimal interference and excellent signal integrity. Designed for frequencies up to 5.8 GHz, it is perfect for cellular, Wi-Fi, antenna installations, and land mobile radio systems. The durable construction, flexible design, and precise connectors make it an essential component for reliable, high-performance RF applications. Order online today for fast shipping and trusted quality.
Buy INFINITG LCCA30172-FT4 now and experience unmatched reliability and high-performance signal transmission for your communication projects.
Frequently Asked Questions
Where can I buy L-COM LCCA30172FT4?
You can click on the BUY or RFQ button to purchase LCCA30172FT4 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30172FT4?
You can download the LCCA30172FT4 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30172FT4?
L-COM
