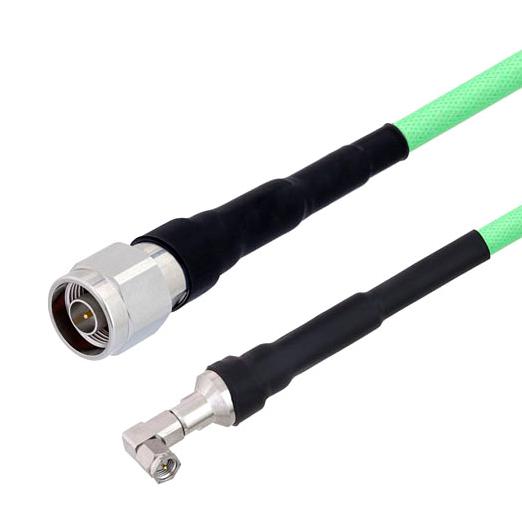

L-COM LCCA30046FT3 RF Cable Assembly
This L-com low loss N male to SMA male right angle cable assembly features heavy duty heat shrink booting using LL335i coax, with a length of 3 feet. Designed for high-frequency applications up to 18 GHz, it offers exceptionally low insertion loss, excellent shielding superiority over 95dB, and a robust construction suitable for automated test systems, laboratory use, and antenna range applications. The cable's flexible design with triple shielded, tape-wrapped PTFE dielectric ensures reliable performance and easy installation in tight spaces, making it ideal for professional RF interconnect needs.
L-COM LCCA30046FT3 RF Cable Assembly Specifications:
- Frequency Range: up to 18 GHz
- VSWR: 1.35:1
- Velocity of Propagation: 83%
- RF Shielding: > 95dB
- Capacitance: 25 pF/ft
- Cable Type: LL335i
- Impedance: 50 Ohms
- Inner Conductor: Copper, Silver plated
- Dielectric Type: Tape wrapped PTFE
- Shield Layers: Silver plated copper tape, copper braid
- Jacket Material: FEP (Green)
- Jacket Outer Diameter: 0.3 inches
- Minimum Bend Radius: 1.5 inches
- Connector Type: N Male, SMA Male Right Angle
- Connector Material: Beryllium Copper with Gold over Nickel plating
- Sealing: Heavy duty heat shrink boot
- Operating Temperature Range: -55°C to +200°C
- Cable Length: 3 Feet (custom lengths available)
- Weight: 0.169 lbs (76.66 g)
Buy the INFINITG Series RF Cables: N Male to SMA Male Right Angle 3 FT
Order the high-quality INFINITG RF cable assembly with N male to SMA male right angle connectors, heavy duty heat shrink boot, and low loss LL335i coax. Suitable for demanding RF applications up to 18 GHz, this 3-foot cable offers excellent shielding over 95dB and flexible, durable construction for laboratory, antenna range, or automated test systems. Ships same day, ensuring quick delivery for your critical projects. Invest in reliable, precision RF interconnects designed to withstand rigorous conditions and deliver superior performance every time.
Get INFINITG LCCA30046FT3 today—built for RF precision, durability, and high-frequency stability in demanding environments.
Frequently Asked Questions
Where can I buy L-COM LCCA30046FT3?
You can click on the BUY or RFQ button to purchase LCCA30046FT3 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30046FT3?
You can download the LCCA30046FT3 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30046FT3?
L-COM
