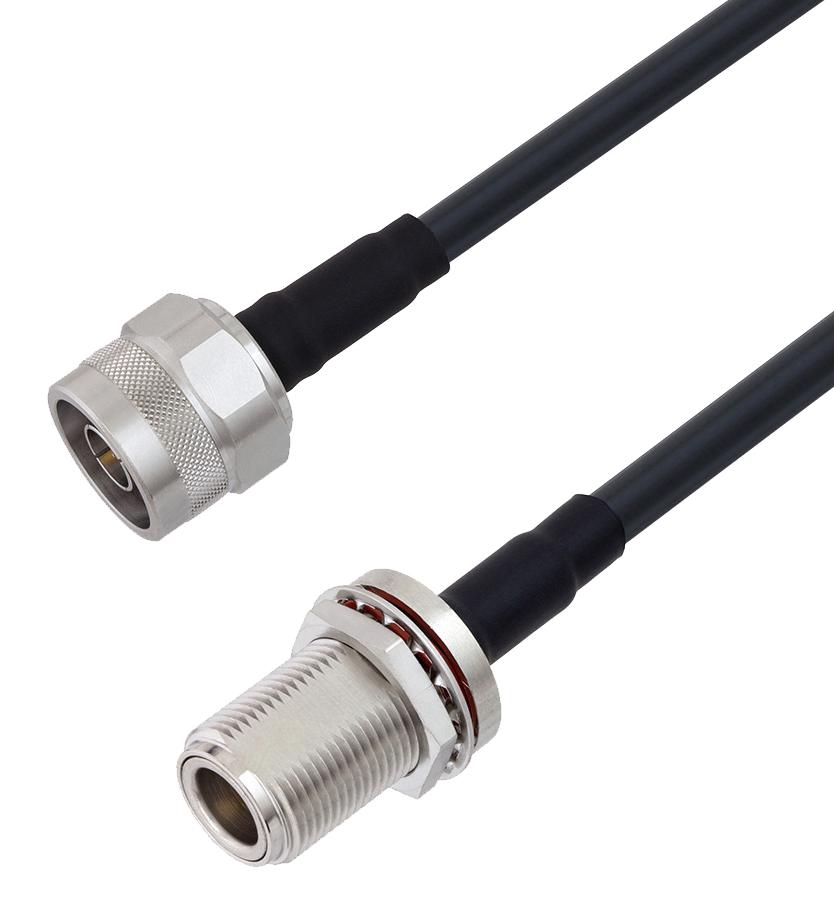

L-COM LCCA30174FT2 RF Cable Assembly
The LCCA30174-FT2 is a high-quality, low loss N male to N female bulkhead cable assembly using 2 feet of LMR-240 coaxial cable with Times Microwave components. Designed for optimal performance up to 5.8 GHz, this flexible RF cable features a PE jacket and double shielding with aluminum tape and tinned copper braid, providing shielding effectiveness greater than 90 dB. It is suitable for antenna installations, land mobile radios, cellular systems, Wi-Fi, and lab applications, offering low insertion loss, excellent shielding, and reliable connections for various communication systems.
L-COM LCCA30174FT2 RF Cable Assembly Specifications:
- Frequency Range: DC to 5.8 GHz
- Velocity of Propagation: 84%
- Insertion Loss: 0.27 dB at 0.25 GHz, 0.35 dB at 0.45 GHz
- Shielding Effectiveness: > 90 dB
- Impedance: 50 Ohms
- Connector Type: N Male, N Female Bulkhead
- Connector Material: Brass with Gold plating (contacts), Brass, Tri-Metal (outer body and coupling nut)
- Cable Type: LMR-240 coaxial cable
- Cable Length: 2 feet (609.6 mm)
- Cable Diameter: 0.89 inches (22.61 mm)
- Inner Conductor: Solid Copper
- Dielectric: PE (F)
- Shield Layers: Aluminum Tape and Tinned Copper Braid
- Operating Temperature Range: -40°C to +85°C
- Jacket Material: PE, Black
- Bend Radius: 0.75 inches (19.05 mm) minimum
- Weight: 0.188 lbs (85.28 g)
Buy the Cor GLOBAL CONNECTIVITY SOLUTIONS LCCA30174-FT2 – Reliable RF Cable Assemblies for Industrial Applications
Enhance your communication systems with our high-quality RF cable assemblies. Designed for durability and low loss, they are ideal for antennas, mobile radios, Wi-Fi, and lab use. With proven shielding effectiveness above 90 dB and a frequency range up to 5.8 GHz, these assemblies guarantee minimal signal loss and reliable performance. Easy to install with flexible, durable construction, they provide a perfect connection for industrial radio, cellular, and communication applications. Order online today for fast delivery and dependable quality.
Order your Cor GLOBAL CONNECTIVITY SOLUTIONS LCCA30174-FT2 low loss RF cable assembly today and ensure dependable, high-frequency connections for your communication projects.
Frequently Asked Questions
Where can I buy L-COM LCCA30174FT2?
You can click on the BUY or RFQ button to purchase LCCA30174FT2 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30174FT2?
You can download the LCCA30174FT2 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30174FT2?
L-COM
