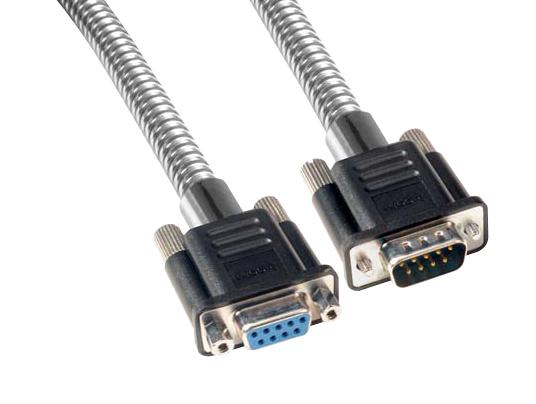

L-COM CSMT9MF25 9-Pin D-Sub Cable Assembly
The L-COM CSMT9MF-2.5 is a high-quality 9-pin D-Sub cable assembly designed for reliable data transmission. This cable features a male connector on one end and a female connector on the other, providing a secure and standardized connection. The 2.5-foot length offers flexibility in cable routing, while the PVC jacket provides durability and protection against environmental factors. The integrated tinned copper braid shield minimizes electromagnetic interference (EMI), ensuring signal integrity. This cable is commonly used in industrial automation, networking, and audio/video equipment applications where a dependable D-Sub connection is required.
L-COM CSMT9MF25 9-Pin D-Sub Cable Assembly Specifications:
- Connector_1: Male 9-Pin UL Style 2919
- Connector_2: Female 9-Pin D-Sub
- Cable_Type: 9 Conductor (26AWG)
- Jacket_Material: PVC, Light Gray (Pantone 400C)
- Shielding: Tinned Copper Braid
- Length_Feet: 2.5
- Length_Meters: 0.76
- Cable_Construction: 2X Armored Metal Armored Coupler Jacket
- Strain_Relief: 2X PVC Overmold/Strain Relief
- Logo: L-COM Logo on Both Sides
- Regulatory_Compliance: CE2011/65/EU (RoHS Directive)
- Overall_Cable_Length_Tolerance_12_305: +1 [25] / -0
- Overall_Cable_Length_Tolerance_12_305_60_1524: +2 [51] / -0
- Overall_Cable_Length_Tolerance_60_1524_120_3048: +4 [102] / -0
- Overall_Cable_Length_Tolerance_120_3048_300_7620: +5% / -0%
- Dimensional_Tolerance_X: ± .2 [5.08]
- Dimensional_Tolerance_XX: ± .02 [.51]
- Dimensional_Tolerance_XXX: ±.005 [.13]
Buy the CSMT9MF-2.5 L-COM 9-Pin D-Sub Cable Assembly | myMectronic
Purchase the L-COM CSMT9MF-2.5 cable assembly securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy L-COM CSMT9MF25?
You can click on the BUY or RFQ button to purchase CSMT9MF25 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part CSMT9MF25?
You can download the CSMT9MF25 datasheet or visit the L-COM website for support.
Who is the manufacturer of CSMT9MF25?
L-COM
