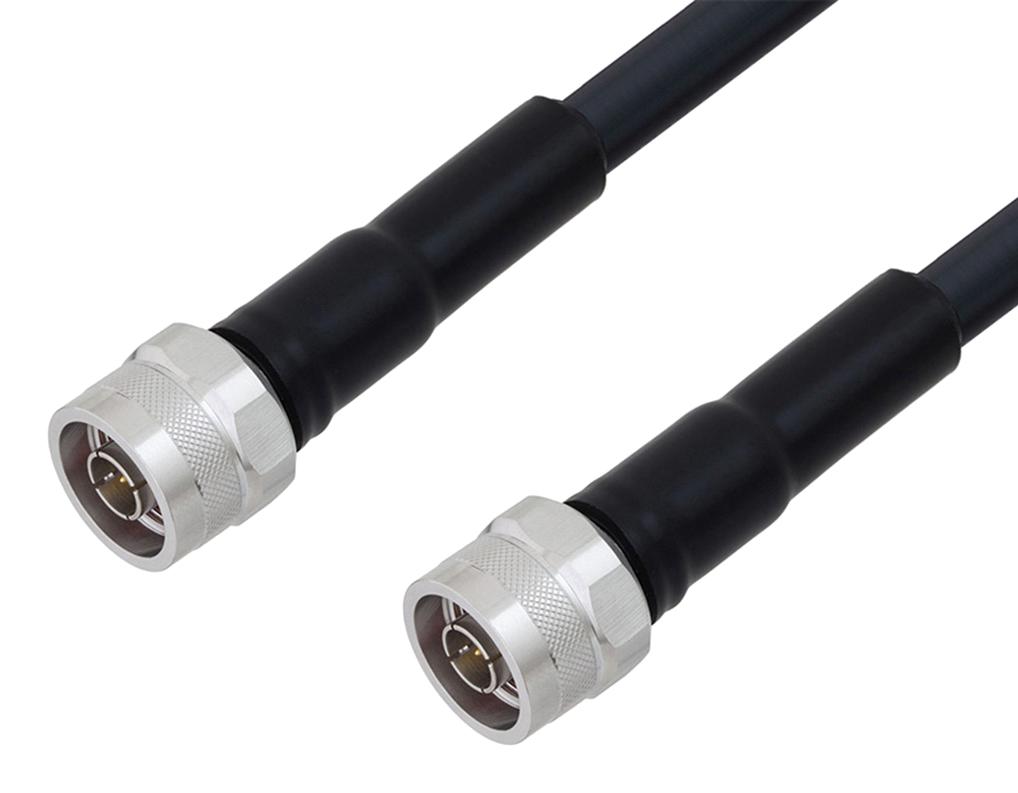

L-COM LCCA30191FT2 RF Cable Assembly
L-com's LCCA30191-FT2 is a high-performance, low-loss N male to N male cable assembly utilizing 2 feet of LMR-400 coax with Times Microwave components. Designed for frequencies up to 6 GHz, it features a PE jacket and double shielding (aluminum tape and tinned copper braid) for superior shielding effectiveness over 90 dB. The flexible, lightweight assembly is ideal for communication systems, laboratory use, and antenna installations, offering low insertion loss, excellent durability, and customizable options. It ships same-day, ensuring quick deployment for various RF and wireless applications.
L-COM LCCA30191FT2 RF Cable Assembly Specifications:
- Frequency Range: DC to 6 GHz
- Impedance: 50 Ohms
- Insertion Loss: 0.23 to 0.41 dB across frequencies
- Shielding Effectiveness: > 90 dB
- Velocity of Propagation: 85%
- Coefficient of Capacitance: 23.9 pF/ft
- Inner Conductor: Copper Clad Aluminum, solid
- Outer Conductors: Aluminum Tape and Tinned Copper Braid
- Jacket Material: PE (Polyethylene)
- Jacket Diameter: 0.405 in (10.29 mm)
- Cable Length: 2 ft
- Diameter: 0.8 in (20.32 mm)
- Weight: 0.168 lbs (76.2 g)
- Maximum Bend Radius: 4 inches
- Connectors: N Male, brass with gold plating
- Operating Temperature Range: -40°C to +85°C
Buy the INFINITG LCCA30191 – Reliable RF Cable for Industrial Applications
Purchase the INFINITG LCCA30191-FT2 low-loss N male to N male cable assembly online for quick delivery. Designed with high-quality LMR-400 coax and Times Microwave components, it offers excellent shielding, flexibility, and durability for RF applications up to 6 GHz. Ideal for satellite, antenna, and test setups, this assembly ensures minimal insertion loss and reliable performance. Buy now to experience superior quality and fast shipping, perfect for communication, wireless, and laboratory use. Enhance your RF connection efficiency today.
Get INFINITG LCCA30191-FT2 today—built for precision, low loss, and long-lasting durability in RF and communication systems.
Frequently Asked Questions
Where can I buy L-COM LCCA30191FT2?
You can click on the BUY or RFQ button to purchase LCCA30191FT2 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30191FT2?
You can download the LCCA30191FT2 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30191FT2?
L-COM
