L-COM LCCA30191FT4 N Male Cable Assembly

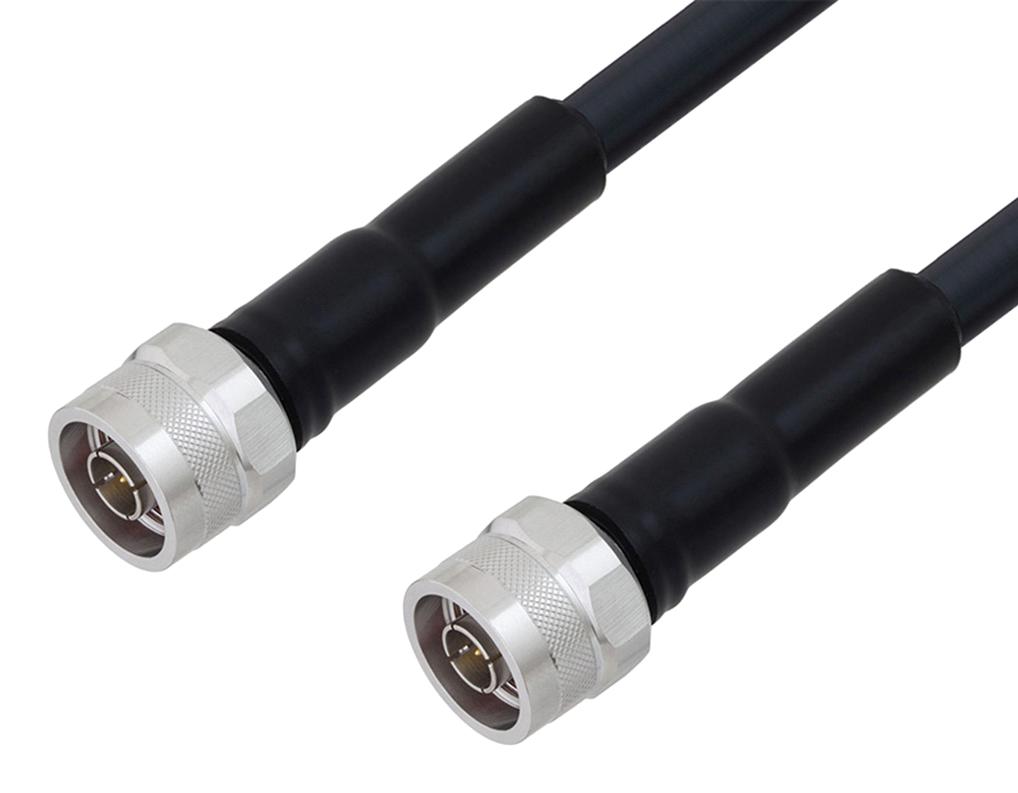

L-com's LCCA30191-FT4 is a low loss N male to N male cable assembly utilizing LMR-400 coax with Times Microwave components, measuring 4 FT. It is ideal for high-frequency applications up to 6 GHz, featuring a PE jacket, flexible design, and shielding effectiveness exceeding 90 dB for superior signal integrity. The assembly is suitable for land mobile radio, cellular and Wi-Fi systems, antenna installations, and laboratory use. Its durable construction, along with low insertion loss and excellent shielding, makes it a reliable choice for communication system needs.
L-COM LCCA30191FT4 N Male Cable Assembly Specifications:
- Cable Type: LMR-400
- Length: 4 FT (1.22 meters)
- Diameter: 0.405 inches (10.29 mm)
- Impedance: 50 Ohms
- Connector Type: N Male to N Male
- Shielding Layers: Aluminum Tape and Tinned Copper Braid
- Shielding Effectiveness: > 90 dB
- Operating Frequency Range: Dc to 6 GHz
- Velocity of Propagation: 85%
- Insertion Loss: 0.27 dB at 0.25 GHz, 0.63 dB at 5.8 GHz
- Group Delay: 1.2 ns/ft
- Capacitance: 23.9 pF/ft
- Inductance: 0.06 uH/ft
- DC Resistance Inner Conductor: 1.39 Ohms/1000 ft
- Outer Conductor Resistance: 1.65 Ohms/1000 ft
- Jacket Material: PE (Black)
- Maximum Bend Radius: 4 inches
- Operating Temperature Range: -40°C to +85°C
Buy the INFINITG Series N Male Cable: LCCA30191-FT4
Purchase the INFINITG Series N Male Cable Assembly with 4 FT LMR-400 coax today. Designed for high-performance communication systems, this low loss, shielded cable features exceptional durability and flexibility. Perfect for antenna installations, land mobile radios, Wi-Fi, and laboratory use, its high shield effectiveness (> 90 dB) guarantees signal integrity. With a frequency range up to 6 GHz and low insertion loss, this assembly provides reliable, high-quality connections for critical applications. Order now for same-day shipping and dependable performance.
Order your INFINITG Series N Male Cable assembly using LMR-400 coax, 4 FT today and ensure reliable high-frequency connectivity with optimal shielding and low loss.
