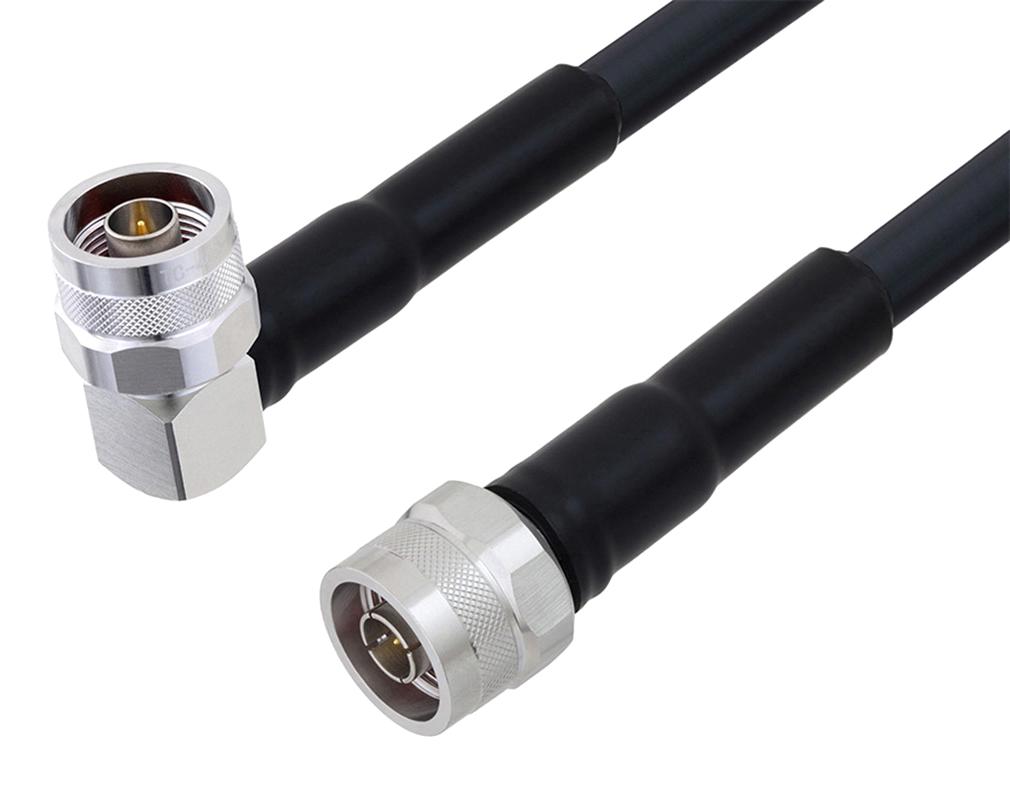

L-COM LCCA30192FT4 RF Cable Assembly
L-com’s LCCA30192-FT4 is a low loss N male right angle to N male cable assembly using 4 FT LMR-400 coax with Times Microwave components, ideal for RF applications up to 6 GHz. It features a flexible PE dielectric with 85% VoP, double shielding with aluminum tape and tinned copper braid for >90 dB shielding, and a right angle connector for tight spaces. Suitable for land mobile radio, cellular, Wi-Fi, antenna installations, and communication systems, offering durable construction and excellent electrical performance.
L-COM LCCA30192FT4 RF Cable Assembly Specifications:
- Frequency Range: Dc to 6 GHz
- Impedance: 50 Ohms
- Velocity of Propagation: 85%
- Shielding Effectiveness: >90 dB
- Jacket Material: PE (F), Black
- Cable Diameter: 0.405 inches
- Cable Length: 4 ft (1.22 meters)
- Inner Conductor: Solid Copper Clad Aluminum
- Dielectric: PE (F)
- Shield Layers: Aluminum Tape and Tinned Copper Braid
- Connector Type: N Male Right Angle to N Male
- Maximum Bend Radius: 4 inches
- Operating Temperature Range: -40°C to +85°C
- Connector Material: Brass with Gold Plating
- Connectors: 500 mating cycles
- Tensile Strength: 40 lbs/in
- Electrical Resistance (DC Resistance): Inner Conductor 1.39 Ohms/1000 ft, Outer Conductor 1.65 Ohms/1000 ft
Buy the Buy INFINITG LCCA30192FT4 Part Number 4 FT Low Loss N Male Right Angle to N Male Cable Assembly Online
Order the INFINITG LCCA30192FT4 low loss N male right angle to N male cable assembly online today. Made with high-quality LMR-400 coax and Times Microwave components, this 4 ft flexible RF cable is perfect for up to 6 GHz applications. It features dual shielding for over 90 dB, a right angle connector for tight installations, and a durable PE jacket. Ideal for mobile radio, cellular, Wi-Fi, antenna setups, and lab use, ensuring reliable performance and long-lasting operation for your communication needs.
Get INFINITG LCCA30192FT4 today—designed for RF reliability and durability in tight spaces.
Frequently Asked Questions
Where can I buy L-COM LCCA30192FT4?
You can click on the BUY or RFQ button to purchase LCCA30192FT4 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30192FT4?
You can download the LCCA30192FT4 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30192FT4?
L-COM
