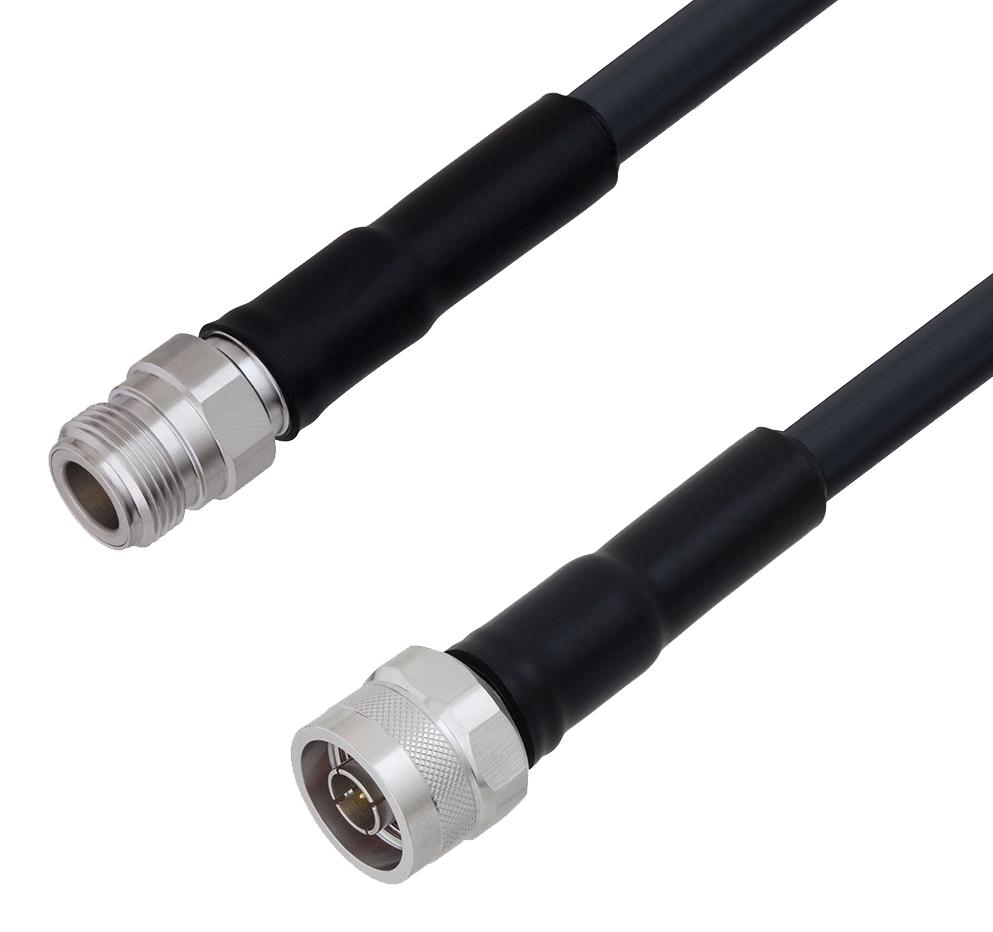

L-COM LCCA30193FT4 N Male to N Female Cable
L-com’s LCCA30193-FT4 is a flexible, low-loss N female to N male coaxial cable assembly measuring 4 feet, utilizing LMR-400 coax with Times Microwave components. Designed for frequencies up to 6 GHz, it features PE dielectric with an 85% VoP, ensuring minimal insertion loss and excellent shielding over 90 dB with double-layered shielding of aluminum tape and tinned copper braid. This assembly is ideal for radio, cellular, Wi-Fi, and antenna applications, offering durability, flexible bending radius of 4 inches, and quick same-day shipping for custom options and testing services.
L-COM LCCA30193FT4 N Male to N Female Cable Specifications:
- Frequency Range: DC to 6 GHz
- Insertion Loss (Typ.): 0.28 dB at 0.25 GHz, 0.36 dB at 6 GHz
- Velocity of Propagation: 85%
- Impedance: 50 Ohms
- Dielectric Type: PE (F)
- Connector 1: N Female, Gold plated brass, MIL-STD-348, 50 Ohms, PTFE dielectric
- Connector 2: N Male, Gold plated brass, MIL-STD-348, 50 Ohms, PTFE dielectric
- Outer Jacket Material: PE, Black
- Jacket Diameter: 0.405 in (10.29 mm)
- Cable Length: 48 inches (4 ft)
- Inner Conductor Material: Copper, Gold plated
- Shielding: Aluminum tape and tinned copper braid, providing >90 dB shielding
- Minimum Bend Radius: 4 inches
- Operating Temperature Range: -40°C to +85°C
- Mechanical Strength: Tensile 160 lbs, Flat Plate Crush 40 lbs/in
Buy the Buy INFINITG Low Loss Cable Part Number LCCA30193-FT4 Online
Order the INFINITG LCCA30193-FT4 low loss N female to N male coaxial cable assembly now and enjoy reliable connection for wireless, cellular, and radio systems. This 4-foot flexible cable utilizes high-quality LMR-400 coax with improved shielding above 90 dB, ensuring minimal signal loss up to 6 GHz. Perfect for antenna installations, laboratory use, and communications infrastructure, it features robust connectors, durable PE jacket, and complies with industry standards for high performance and durability. Same-day shipping makes it an ideal choice for urgent projects and custom configurations.
Buy INFINITG LCCA30193-FT4 cable assembly today and experience exceptional low loss performance for communication and antenna applications.
Frequently Asked Questions
Where can I buy L-COM LCCA30193FT4?
You can click on the BUY or RFQ button to purchase LCCA30193FT4 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30193FT4?
You can download the LCCA30193FT4 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30193FT4?
L-COM
