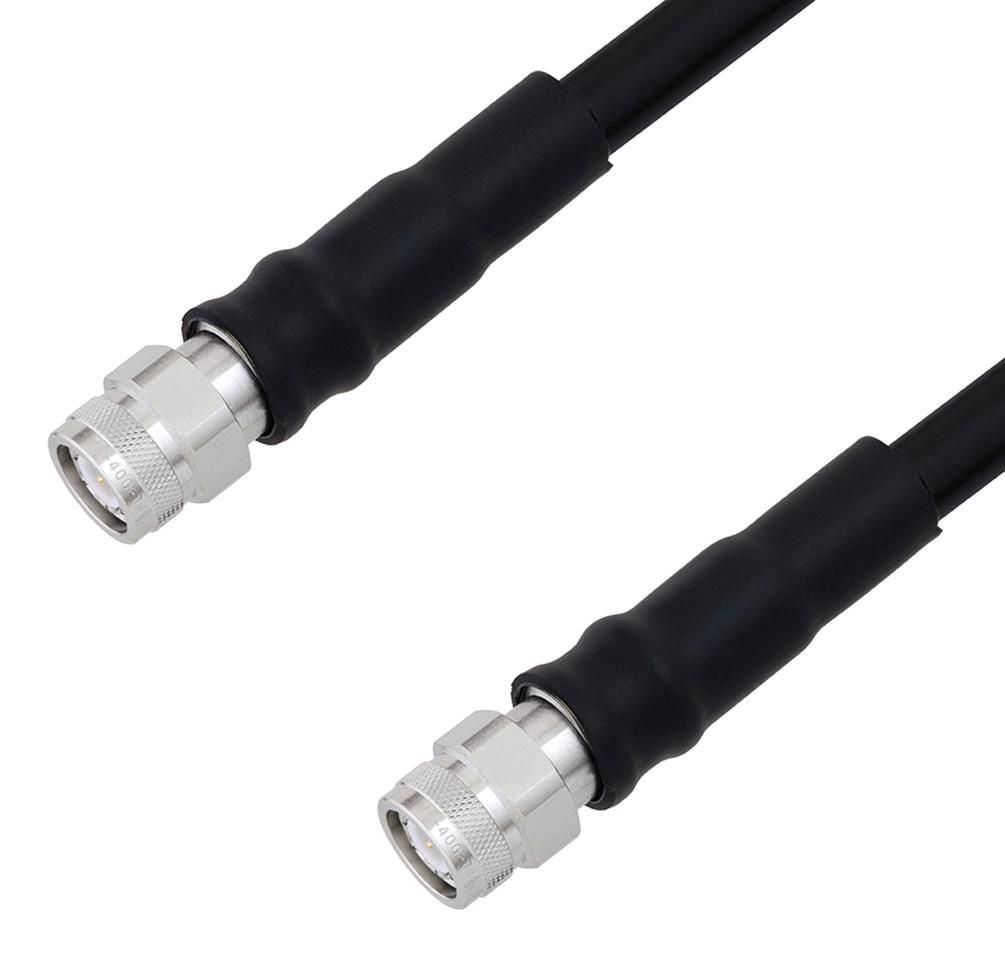

L-COM LCCA30196FT2 RF Coax Cable
L-com’s LCCA30196-FT2 is a low loss TNC male to TNC male cable assembly utilizing LMR-400 coaxial cable with Times Microwave components. It features a 2-foot length, operating up to 6 GHz with an impedance of 50 Ohms. The cable’s PE (F) dielectric provides a phase velocity of 85% and very low insertion loss. Double shielding with aluminum tape and tinned copper braid offers over 90 dB shielding effectiveness. Designed for applications like mobile radio, Wi-Fi, antenna installs, and lab use, it assures high performance, durability, and flexible bending radius. The connectors support 500 mating cycles and withstand operating temperatures from -40°C to +85°C.
L-COM LCCA30196FT2 RF Coax Cable Specifications:
- Frequency Range: up to 6 GHz
- Impedance: 50 Ohms
- Connector Type: TNC Male to TNC Male
- Cable Type: LMR-400
- Cable Length: 2 feet
- Velocity of Propagation: 85%
- Shielding Effectiveness: > 90 dB
- Insertion Loss: Typ. 0.24 dB at 0.25 GHz, 0.41 dB at 5.8 GHz
- Inner Conductor Material: Copper Clad Aluminum
- Dielectric: PE (F), phase velocity 85%
- Outer Shield: Tinned Copper Braid with Aluminum Tape
- Dimensions: Diameter 0.622 in (15.8 mm), Jacket Material: PE, Black
- Minimum Bend Radius: 4 inches
- Operating Temperature Range: -40°C to +85°C
- Mating Cycles: 500
- Mechanical Strength: Tensile 160 lbs
- Voltage Rating: Jacket spark 8,000 Vrms
Buy the Buy INFINITG LCCA30196FT2 Part Number LCCA30196-FT2 Online
Order the INFINITG LCCA30196-FT2 low loss TNC male to TNC male cable assembly online today. With a 2-foot length, operating frequency up to 6 GHz, and superior shielding over 90 dB, this assembly ensures excellent signal integrity for mobile radios, Wi-Fi, antennas, and lab applications. Its durable construction, flexible bend radius of 4 inches, and 500 mating cycles make it perfect for demanding environments. Get fast shipping and reliable performance by purchasing online now.
Buy INFINITG LCCA30196-FT2 now and experience unmatched reliability and high-performance RF connectivity for your communication systems.
Frequently Asked Questions
Where can I buy L-COM LCCA30196FT2?
You can click on the BUY or RFQ button to purchase LCCA30196FT2 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30196FT2?
You can download the LCCA30196FT2 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30196FT2?
L-COM
