L-COM LCCA30269FT2 RF Cable Assembly

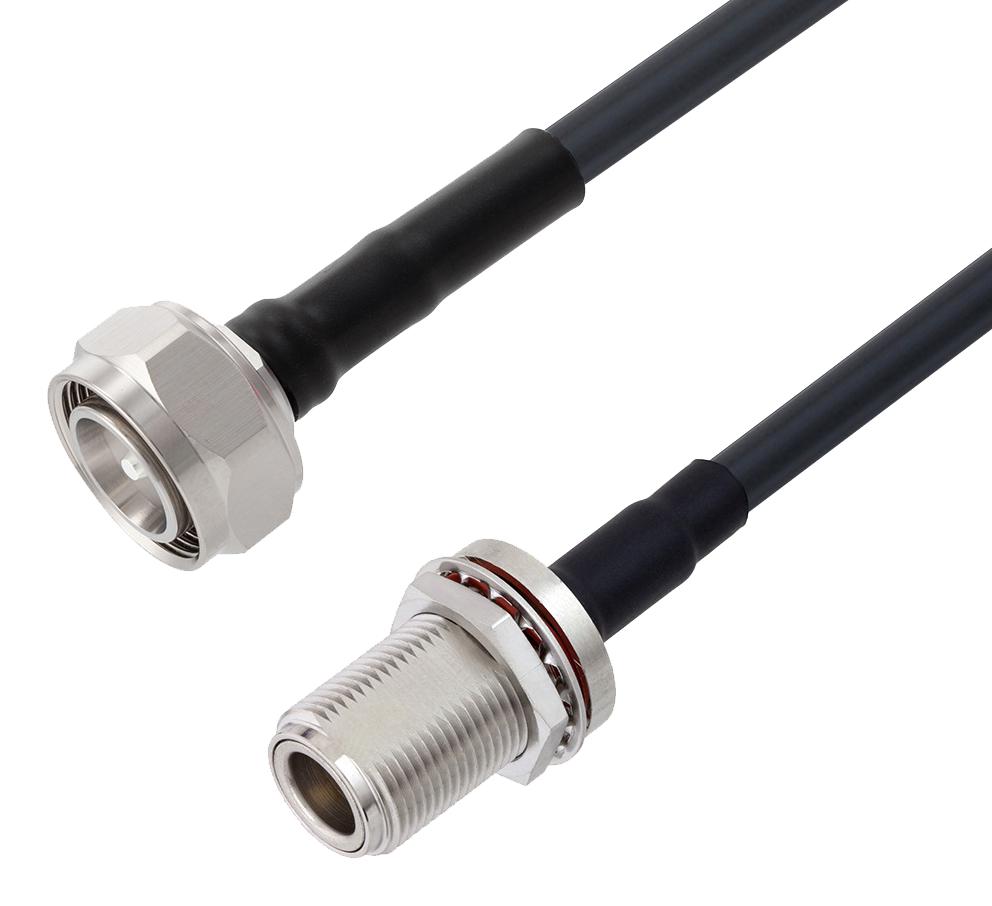

The LCCA30269-FT2 is a low-loss 2-foot bulkhead cable assembly featuring a 4.3-10 male connector on one end and an N female connector on the other. It uses high-quality LMR-240 coaxial cable with a PE dielectric, ensuring excellent signal integrity and minimal insertion loss up to 5.8 GHz. The double shielding—aluminum tape and tinned copper braid—provides over 90 dB shielding effectiveness, suitable for radio, cellular, Wi-Fi, and antenna applications. The assembly maintains high flexibility, with a bend radius of 2.5 inches and withstands environments from -40°C to +85°C.
L-COM LCCA30269FT2 RF Cable Assembly Specifications:
- Connector Type: 4.3-10 Male to N Female Bulkhead
- Cable Type: LMR-240 coaxial cable
- Impedance: 50 Ohms
- Frequency Range: Up to 5.8 GHz
- Shielding Effectiveness: > 90 dB
- Inner Conductor Material: Copper
- Dielectric Material: PE (F)
- Cable Length: 24 inches (2 ft)
- Jacket Material: Black PE
- Jacket Diameter: 0.24 in (6.1 mm)
- Maximum Bend Radius: 2.5 inches
- Operating Temperature Range: -40°C to +85°C
- Mating Cycles: 500
- Connectors: Brass with silver/gold plating
- Voltage Rating: 5,000 Vrms
- Group Delay: 1.21 ns/ft
- Capacitance: 24.2 pF/ft
- Inductance: 0.06 uH/ft
- DC Resistance (Inner Conductor): 3.2 Ohms/1000 ft
- DC Resistance (Outer Conductor): 3.89 Ohms/1000 ft
Buy the Cor GLOBAL CONNECTIVITY SOLUTIONS LCCA30269-FT2 – Reliable RF Cable Assemblies for Industrial Applications
Order the Cor GLOBAL CONNECTIVITY SOLUTIONS LCCA30269-FT2 RF cable assembly online today for quick delivery and optimal signal transmission. This high-quality, low-loss coaxial cable features a 4.3-10 male to N female bulkhead connection, utilizing LMR-240 coax for superior performance at frequencies up to 5.8 GHz. Its dual shielding ensures over 90 dB attenuation, ideal for radio, cellular, Wi-Fi, and antenna applications. Designed for flexibility with a bend radius of 2.5 inches, it withstands harsh environments from -40°C to +85°C. Perfect for engineers seeking reliable, professional-grade RF connections.
Buy Cor GLOBAL CONNECTIVITY SOLUTIONS LCCA30269-FT2 cable assembly now and experience unmatched reliability and performance for your communication needs.
Frequently Asked Questions
Where can I buy L-COM LCCA30269FT2?
You can click on the BUY or RFQ button to purchase LCCA30269FT2 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30269FT2?
You can download the LCCA30269FT2 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30269FT2?
L-COM
