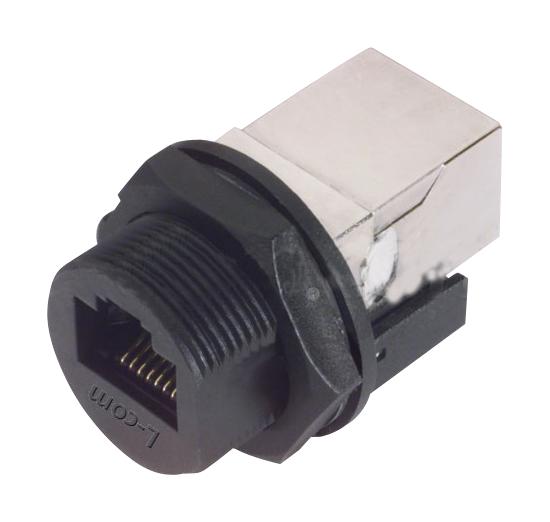

L-COM WPRJFTCAT5E RJ45 Waterproof Connector
The IP67 RJ45 feed-through shielded connector offers reliable protection against dust and water, rated IP67. Made with nylon, brass, PBT, and EPDM for durability. Features include a panel cutout design, gold-plated pins, and compatibility with panel thickness up to 0.110 inches. Suitable for industrial automation, networking, and communication systems requiring secure and waterproof connections. This connector ensures excellent electrical continuity, easy installation, and robust environmental resistance, making it ideal for outdoor or harsh environments with demanding performance needs.
L-COM WPRJFTCAT5E RJ45 Waterproof Connector Specifications:
- Material: Nut and housing: Nylon, Glass filled, Black
- Gasket: EPDM, Black
- Pin: Brass, Gold plated
- PCB: FR-4
- Jack: PBT polyester, UL 94V-0
- Shield: Brass, Nickel plated
- Ingress Protection Rating: IP67
- Maximum Panel Thickness: 0.110 inches (2.8 mm)
- Compatible with panel thickness: 0.063 inches (1.6 mm)
- Cable Length Tolerance: ±0.060 inches (1.52 mm)
- Overall Dimensions: 0.764 inches ±0.004 (19.4 mm), 0.819 inches ±0.004 (20.8 mm)
- Connector Type: Shielded RJ45 feed-through
- Wire Range: Suitable for standard Ethernet cables
- Connection Type: Modular jack
- Mounting Style: Panel mount, with recommended cutout
- Temperature Range: Not specified, suitable for typical industrial environments
- Certifications: UL Listed, IP67 rated for outdoor use
Buy the L-COM Series IP67 RJ45: WPRJFTCAT5E
Purchase the durable and reliable IP67 RJ45 waterproof connector from L-COM online today. Designed for harsh environments, it features gold-plated contacts, robust nylon and brass construction, and IP67 sealing. Ideal for outdoor networking, industrial automation, and communication systems, this connector guarantees excellent electrical performance and environmental resistance. Easy to install with panel mounting, it provides secure data transmission even in challenging conditions. Strengthen your projects with trusted waterproof connectivity solutions available now for fast and secure online ordering.
Order your L-COM Series IP67 RJ45 connector today and ensure secure, waterproof networking connections for outdoor and industrial projects.
Frequently Asked Questions
Where can I buy L-COM WPRJFTCAT5E?
You can click on the BUY or RFQ button to purchase WPRJFTCAT5E from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part WPRJFTCAT5E?
You can download the WPRJFTCAT5E datasheet or visit the L-COM website for support.
Who is the manufacturer of WPRJFTCAT5E?
L-COM
