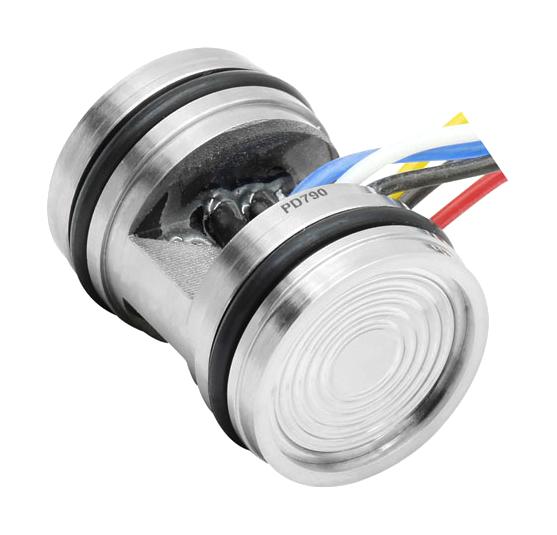

L-COM PD7900AM2 Differential Pressure Sensor
The PD790 series differential pressure sensor provides accurate, stable measurement of differential pressures up to 35 kPa, with an isolated stainless steel construction for measuring various media. It features a 19 mm diameter F19 sensor, high static pressure capacity of 20MPa, and overpressure protection of 1.5 times the measurement range. Suitable for industrial process control, pressure monitoring, and flow measurement applications, its robust design offers wide temperature compensation, zero correction, and high reliability. The device integrates silicon die technology, stainless steel housing, and Viton O-rings for exceptional durability and performance in harsh environments.
L-COM PD7900AM2 Differential Pressure Sensor Specifications:
- Pressure Range: 0-35 kPa
- Linearity: +0.25 % Full Scale
- Repeatability: +0.075 % Full Scale
- Hysteresis: 0.075 % Full Scale
- Full Scale Output: 60 mV DC
- Zero Output: 3 mV DC
- Thermal Error @25°C: ±0.75 % Full Scale/°C
- Compensated Temperature Range: 0-50°C
- Long Term Stability: +0.3 to +0.5 % Full Scale/year
- Overpressure capacity: 15 x Full Scale
- High Static Pressure: 20MPa
- Power Supply: 10 VDC, 2 mA
- Response Time: 1 ms (10%-90%)
- Material: Stainless Steel 316L for diaphragm and housing
- Temperature Range: Operating -40°C to 125°C, Storage -40°C to 125°C
- Insulation Resistance: 100 MΩ at 100VDC
- Electrical Connection: Silicon rubber wires, 100mm length
- Certifications: ROHS, CE
Buy the INFINITG Series PD790 Differential Pressure Sensor: PD790-0AM2
Order the INFINITG PD790 differential pressure sensor online today to ensure precise measurement capabilities for industrial applications. Featuring stainless steel construction, high static pressure capacity, and reliable silicon die technology, this sensor measures differential pressures up to 35kPa with outstanding stability. It’s ideal for industrial process control, flow meters, and pressure monitoring, providing consistent accuracy even under harsh conditions. Its robust design, wide temperature range, and certifications guarantee quality. Purchase now for fast delivery and expert support to enhance your measurement solutions.
Buy INFINITG PD790-0AM2 now and experience unmatched reliability and performance with high static pressure capacity and precise differential measurement.
