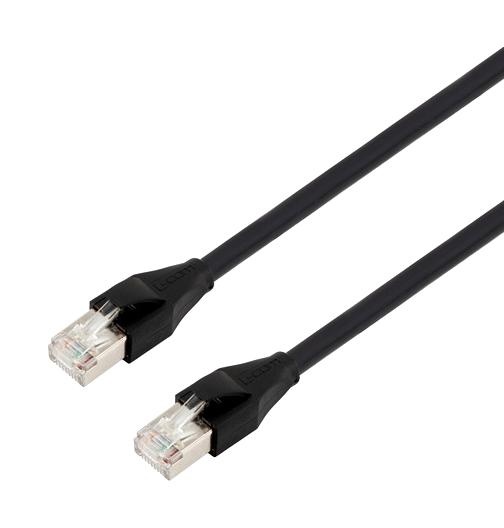

L-COM TRD795BLK5M Ethernet Cable
The L-com TRD795BLK-5M is a 5-meter Category 7 Ethernet cable assembly featuring double shielding with an overall braid shield and individually foil-shielded twisted pairs. It uses 26 AWG stranded conductors for enhanced flexibility and is equipped with RJ45 male plugs on both ends, wired according to TIA standards. The cable has a black PVC jacket that is flame tested per IEC 60332-1, rated for 30V operation and suitable for temperatures from -10°C to +80°C. Ideal for high-speed data networks including 10 gigabit applications, it ensures reliable and high-performance networking in data centers and enterprise environments.
L-COM TRD795BLK5M Ethernet Cable Specifications:
- Cable Type: Category 7 shielded twisted pair (STP)
- Conductors: 26 AWG stranded copper
- Shielding: Aluminum/polyester foil shielding per pair and overall tin-plated copper braid
- Jacket Material: PVC, black color, flame tested IEC 60332-1
- Jacket Diameter: 0.236 inches (6.0 mm)
- Operating Temperature: -10°C to +80°C
- Voltage Rating: 30V
- Connectors: 2x RJ45 shielded modular plugs, gold-plated contacts, snagless boots
- Wiring Map: TIA-568-A or TIA-568-B standard
- Lengths Available: 0.5m, 1m, 2m, 3m, 5m, 7.5m, 10m, 15m
- Rated for high-speed data transfer including 10 gigabit Ethernet
- Certification and Compliance: TIA-568-C.2
- Note: Lengths over 10 meters are channel-rated for network testing and certification
Buy the Buy L-com Cable Part Number TRD795BLK5M Online
Purchase the L-com TRD795BLK-5M Ethernet cable online today for secure and high-performance networking. With double shielding, RJ45 connectors, and flexible 26 AWG conductors, this cable ensures fast and reliable data transfer suitable for data centers and professional setups. Its rugged PVC jacket rated for -10°C to +80°C and 30V operation makes it ideal for demanding environments. Order now and boost your network's speed, security, and stability with this durable, high-quality Category 7 cable, perfect for high-bandwidth applications including 10 gigabit Ethernet.
Buy L-com TRD795BLK-5M cable now and experience reliable high-speed data transmission in demanding networking environments.
Frequently Asked Questions
Where can I buy L-COM TRD795BLK5M?
You can click on the BUY or RFQ button to purchase TRD795BLK5M from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part TRD795BLK5M?
You can download the TRD795BLK5M datasheet or visit the L-COM website for support.
Who is the manufacturer of TRD795BLK5M?
L-COM
