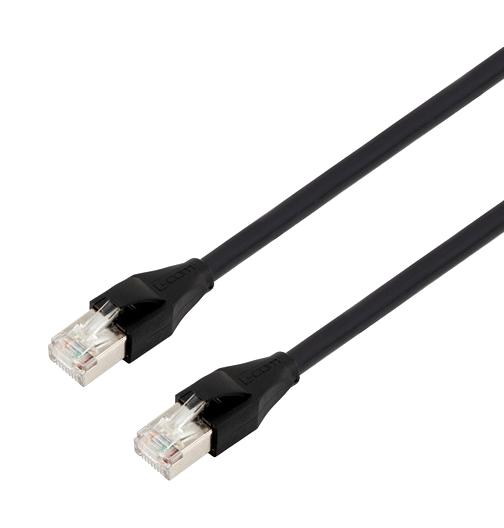

L-COM TRD795BLK75M Shielded Ethernet Cable
L-com's double-shielded Category 7 Ethernet cable features an overall braid shield around individually shielded twisted pairs, compliant with TIA specifications. It has a black PVC jacket that is flame tested according to IEC 60332-1, with 26 AWG stranded conductors for flexibility. The 7.5-meter cable is suitable for high-speed networks, including Category 6a and 10 gigabit applications, making it ideal for data centers and communications. The cable is wired with RJ45 male connectors on each end and rated for up to 30V with an operating temperature range of -10°C to +80°C. It is cost-effective compared to LSZH or industrial double-shielded cables.
L-COM TRD795BLK75M Shielded Ethernet Cable Specifications:
- Cable Type: Category 7 shielded Ethernet cable
- Conductors: 26 AWG stranded copper
- Shielding: Aluminum/polyester foil around each twisted pair, overall braided shield of tinned copper
- Jacket Material: PVC, color: black
- Jacket Diameter: 6.0 mm (0.236 inches)
- Operating Temperature: -10°C to +80°C
- Voltage Rating: 30V
- Connector Type: RJ45 male connectors on each end
- Wire Map: Twisted pairs with color coding (white-orange, orange, white-green, green, white-brown, brown, white-blue, blue)
- Certification: Compliant with TIA-1096 specifications
- Lengths Available: 0.5m to 15m, with channel-rated lengths over 10 meters
- Flame Test: IEC 60332-1
- Application: High-speed Ethernet, data centers, telecommunications, industrial networking
Buy the L-com TRD795BLK75M – Reliable Category 7 Shielded Ethernet Cable for Industrial Applications
Enhance your networking setup with L-com's high-quality shielded Ethernet cable. Designed for durability and performance, this Category 7 cable with double shielding ensures excellent data integrity and reduced interference. The 7.5-meter length is perfect for data centers, industrial environments, and professional installations requiring reliable high-speed connectivity. Equipped with RJ45 connectors, the cable withstands extreme temperatures and is rated at 30V, making it a versatile solution for demanding applications. Invest in proven quality and ease of installation with this cost-effective Ethernet solution available for purchase online.
Buy L-com TRD795BLK75M now and experience unmatched reliability and performance for high-speed network installations.
