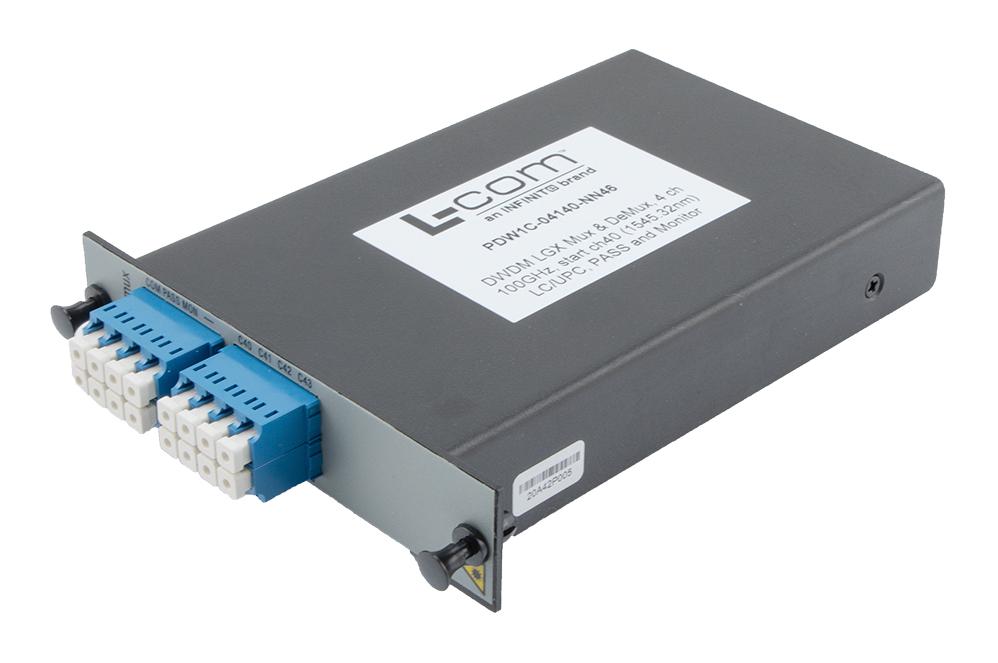

L-COM PDW1C04140NN46 DWDM Filter Module
This is a standard LGX filter module featuring combined multiplexing and demultiplexing functionalities with four DWDM channels. It includes LC/UPC connectors and offers a monitor port option on both the mux and demux units. The module supports an express channel for passing all DWDM channels not present on the filter, enabling easy upgrades. It is a dual-fiber filter that manages one muxed signal and one demuxed composite signal, starting at channel 40 (1545.32 nm) with 100 GHz channel spacing. Designed for single-mode fiber networks, it is suitable for metro transport applications, side-by-side mux and demux functions, and inside plant operations.
L-COM PDW1C04140NN46 DWDM Filter Module Specifications:
- Operating Wavelength: 1527.22 - 1564.68 nm
- Pass Port Wavelength: 1527.22 - 1564.68 nm
- Pass Port Insertion Loss: 2 dB
- Pass Port Isolation: 12 dB
- Pass Band: 0.68 - 0.93 nm
- Pass Band Ripple: 0.5 dB
- Center Wavelength (Channel): 1542.94 - 1545.32 nm
- Channel Spacing: 0.83 nm
- Channel Insertion Loss: 25 dB
- Return Loss: 45 dB
- Connector Type: LC/UPC
- Number of Channels: 4
- Module Function: Mux/DeMux
- Filter Type: DWDM
- Directivity: 50 dB
- PDL: 0.25 dB
- PMD: 0.2 Ps
- Power Handling: 300 mW
- Adjacent Channel Isolation: 28 dB
- Non-Adjacent Channel Isolation: 40 dB
- Channel to Monitor Port IL: 25 dB
- COM to Monitor Port IL: 23 dB
- IL Thermal Stability: 0.005 dB/°C
- Wavelength Thermal Stability: 0.002 nm/°C
- Operating Temperature Range: -20 to +65°C
- Storage Temperature Range: -40 to +85°C
- Humidity: 5-95% RH
Buy the L-com PDW1C-04140-NN46 – Reliable DWDM for Industrial Applications
Purchase the DWDM filter module online today to enhance your fiber optic network performance. Featuring four channels with 100 GHz spacing, LC/UPC connectors, and monitor options, this high-quality LGX filter is ideal for metro transport, regional distribution, and inside plant applications. Its dual-fiber design manages muxing and demuxing signals efficiently, supporting scalable network upgrades. With fast same-day shipping, expert support, and comprehensive specifications, it delivers reliable, flexible, and high-capacity optical networking solutions tailored to your business needs.
Get L-com PDW1C-04140-NN46 today—engineered for high-capacity metro networks and durable fiber-optic communications.
