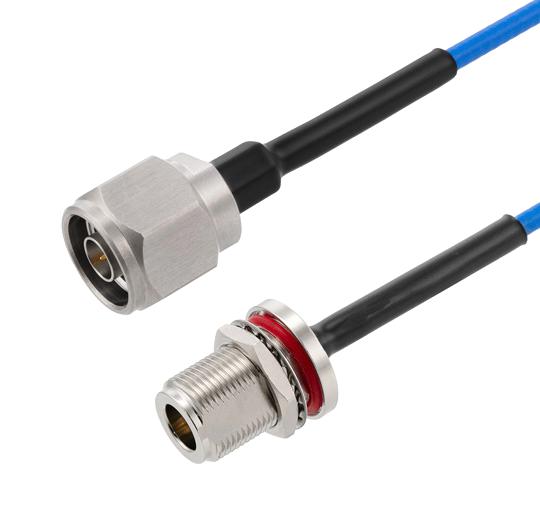

L-COM LCCA30010FT5 RF Cable Assembly
L-com's N Male to N Female bulkhead cable assembly features a 5.0 ft length with 402SS Series coaxial cable, capable of operating up to 18 GHz. Designed for durability and flexibility, it incorporates stainless steel connectors with gold plating and a heavy-duty heat shrink boot for strain relief. The cable includes a double shield made of silver-plated copper braid over a spiral strip, providing shielding effectiveness greater than 110dB. Ideal for laboratory, RF interconnect, and automated test systems, this assembly ensures reliable, high-performance external connections in demanding applications.
L-COM LCCA30010FT5 RF Cable Assembly Specifications:
- Frequency Range: DC to 18 GHz
- Insertion Loss: max 1.372 dB at 18 GHz
- Impedance: 50 Ohms
- Velocity of Propagation: 70%
- Shielding Effectiveness: > 110dB
- Capacitance: 29.4 pF/ft
- Operating Voltage: 500 Vrms
- Cable Type: 402SS Series coaxial
- Outer Diameter: 0.163 in (4.14 mm)
- Jacket Material: FEP (Tan)
- Inner Conductor Material: Copper, Silver Plated
- Dielectric Type: PTFE
- Number of Shields: 2 (Silver Plated Copper Tape and Braid)
- Cable Length: 5.0 ft
- Weight: 0.37 lbs (167.83 g)
- Repeated Minimum Bend Radius: 1 in (25.4 mm)
Buy the Buy INFINITG N Male to N Female Bulkhead Cable Part Number LCCA30010-FT5 Online
Purchase the INFINITG N Male to N Female bulkhead cable assembly online now and enjoy same-day shipping. This 5-foot coaxial cable with 402SS series construction offers excellent shielding, durability, and high-frequency performance up to 18 GHz. Its double shield ensures superior EMI protection, making it ideal for laboratory, RF interconnect, and automated test systems. Features include a heavy-duty heat shrink boot for strain relief, stainless steel connectors with gold plating for corrosion resistance, and a flexible design for tight bends. Ensure reliable external connections and long-term performance by ordering this high-quality RF cable assembly today.
Get INFINITG N Male to N Female Bulkhead Cable LCCA30010-FT5 today—designed for high-frequency reliability, flexibility, and long-lasting durability in RF applications.
Frequently Asked Questions
Where can I buy L-COM LCCA30010FT5?
You can click on the BUY or RFQ button to purchase LCCA30010FT5 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30010FT5?
You can download the LCCA30010FT5 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30010FT5?
L-COM
