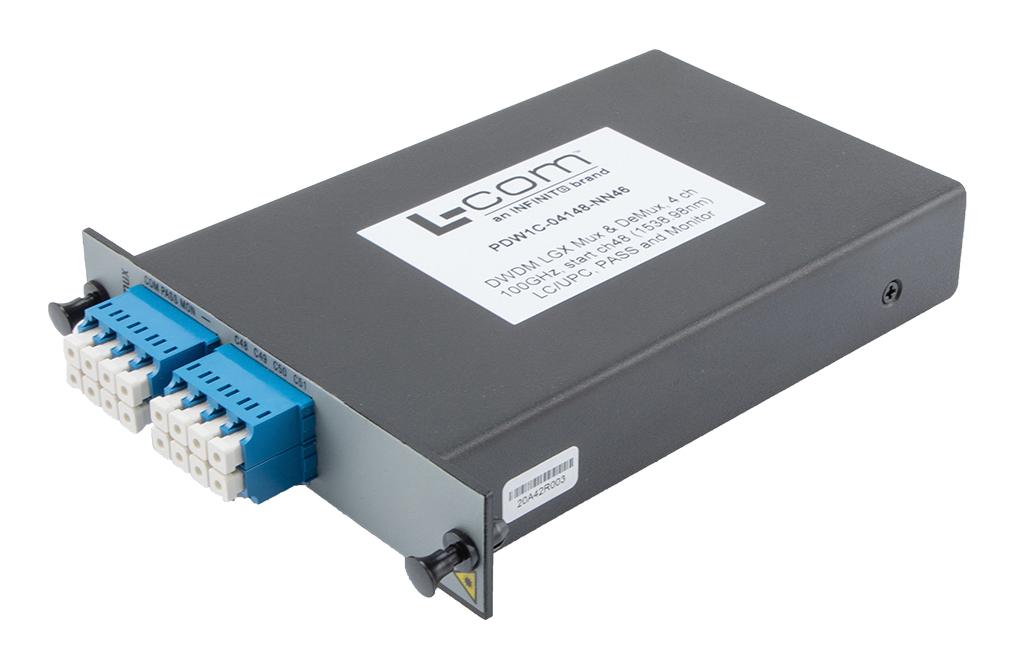

L-COM PDW1C04148NN46 DWDM Filter Module
This passive DWDM filter module features four channels starting at 1538.98 nm (channel 48) with 100 GHz spacing, LC/UPC connectors, and an express channel for upgradeability. It offers dual fiber operation with multiplexing and demultiplexing functions, ideal for metro, inside plant, and regional networks. The LGX cassette design ensures easy installation and compatibility with single-mode fiber systems. It supports monitor ports on both mux and demux units, providing flexibility, high performance, and reliable operation in telecom and data center applications, ensuring optimal signal integrity and network scalability.
L-COM PDW1C04148NN46 DWDM Filter Module Specifications:
- Operating Wavelength: 1527.22 to 1564.68 nm
- Pass Port Wavelength: 1527.22 to 1564.68 nm
- Pass Port Insertion Loss: 2 dB
- Pass Port Isolation: 12 dB
- Pass Band: 0.68 to 0.93 nm
- Pass Band Ripple: 0.5 dB
- Center Wavelength (Channel): 1536.61 to 1538.98 nm
- Channel Spacing: 0.83 nm
- Channel Insertion Loss: 25 dB
- Return Loss: 45 dB
- Directivity: 50 dB
- PDL: 0.25 dB
- PMD: 0.2 Ps
- Power Handling: 300 mW
- Adjacent Channel Isolation: 28 dB
- Non-Adjacent Channel Isolation: 40 dB
- Channel to Monitor Port IL: 25 dB
- COM to Monitor Port IL: 23 dB
- IL Thermal Stability: 0.005 dB/°C
- Wavelength Thermal Stability: 0.002 nm/°C
- Operating Temperature Range: -20°C to +65°C
- Storage Temperature Range: -40°C to +85°C
- Humidity: 5% to 95% RH
Buy the L-com Series DWDM Filter: PDW1C 04148 NN46
Purchase the L-com Series DWDM Filter PDW1C 04148 NN46 online today to ensure high-performance, scalable fiber optic networks. Featuring four channels with 100 GHz spacing, LC/UPC connectors, and express functionality, this dual fiber module offers easy upgradeability for metro, inside plant, and regional applications. Its robust design includes monitor ports for performance tuning, high isolation levels, and excellent thermal stability. With same-day shipping, expert support, and a trusted reputation, this module guarantees seamless integration and long-term network reliability, making it ideal for telecom and data center infrastructures.
Order your L-com Series DWDM Filter PDW1C 04148 NN46 today and enhance your fiber optic network with reliable and scalable multiplexing solutions.
Frequently Asked Questions
Where can I buy L-COM PDW1C04148NN46?
You can click on the BUY or RFQ button to purchase PDW1C04148NN46 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part PDW1C04148NN46?
You can download the PDW1C04148NN46 datasheet or visit the L-COM website for support.
Who is the manufacturer of PDW1C04148NN46?
L-COM
