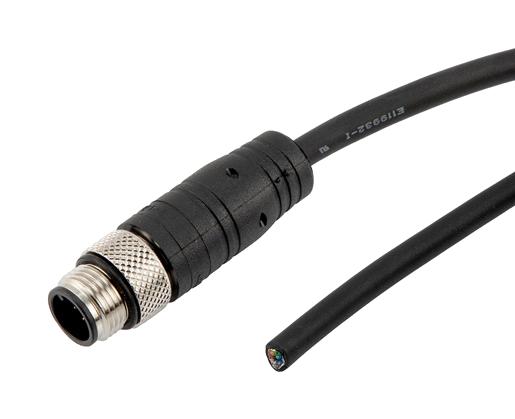

L-COM TRG886P6B5M Industrial M12 Sensor Cable
The TRG886-P4B-5M from L-com is a 5-meter M12 cable with an 8-pole A-code male connector on one end and a blunt-cut pigtail on the other. The cable features straight wiring with 26 AWG stranded conductors, offering flexibility and durability. The black UL 20549 PUR jacket is flame-rated (VW-1) and suitable for outdoor industrial environments, providing resistance to sunlight, oils, chemicals, and moisture. It includes a foil shield for EMI and RFI protection in high-noise settings. The threaded M12 male connector is IP67 waterproof when properly mated. The pigtail end is pre-cut for crimping, soldering, spring, or clamp connections, making it ideal for sensor and actuator applications, including connections to equipment via crimp, solder, or clamps. Suitable for industrial sensing, instrumentation, communication, networking, and factory automation applications.
L-COM TRG886P6B5M Industrial M12 Sensor Cable Specifications:
- Cable Length: 5 meters
- Connector Type: M12, 8-pole A-code male
- Connector Features: Threaded, IP67 waterproof when mated
- Conductors: 26 AWG stranded copper
- Jacket Material: UL 20549 PUR, flame-rated VW-1
- Jacket Color: Black
- Shielding: Aluminum/polyester foil shield with drain wire
- Temperature Range: -25°C to +80°C
- Insulation Material: PBT+GF
- Contact Material: Phosphor bronze with 15μ
- 24
- Gold Plated
- Ingress Protection: IP67
- Chemical Resistance: Oil, sunlight, chemicals resistant
- Flame Rating: VW-1
- Operating Voltage: 30 V AC/DC
- Maximum Current: 2A
- Environmental Resistance: Suitable for outdoor and industrial use
Buy the L-com TRG886P6B5M – Reliable Industrial M12 Sensor Cable for Automation Applications
Order the L-com TRG886P6B5M online today to enjoy a durable, flexible 5-meter industrial M12 sensor cable. Featuring a waterproof IP67 connector and foil shielding, it ensures reliable signal integrity even in harsh environments. Perfect for sensor, actuator, instrumentation, communication, and factory automation applications, this cable offers flame-resistant PUR jacket for outdoor durability and resistance to oils, chemicals, and sunlight. Invest in quality connection solutions that provide long-term performance in industrial settings. Purchase now for fast, secure delivery.
Get L-com TRG886P6B5M today—built for precision and long-lasting durability in industrial automation and sensing systems.
