L-COM PS78102G0L1 Pressure Sensor

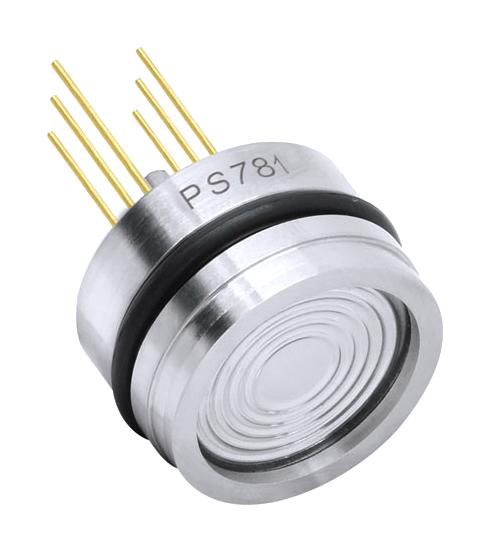

The PS781-02G0L1 is a highly stable stainless steel pressure sensor featuring a 19mm diameter housing, capable of measuring gauge pressure ranges from 0 to 70kPa. It offers wide temperature compensation, long-term stability of ±0.1%FS per year, and is suitable for various media thanks to its stainless steel 316L construction and Viton O-ring. Designed for industrial process control, level measurement, calibration, and HVAC applications, it provides electrical signals through a Kovar pin connector with excellent reliability in harsh environments.
L-COM PS78102G0L1 Pressure Sensor Specifications:
- Pressure Range: 0-70 kPa
- Linearity: ±0.15 - 0.2% Full Scale
- Repeatability: ±0.05 - 0.075% Full Scale
- Hysteresis: ±0.05 - 0.075% Full Scale
- Full Scale Output: 70 mV DC
- Zero Output: 2 mV DC
- Temperature Compensation Range: -10°C to 80°C
- Long Term Stability: ±0.1 - 0.2% FS/year
- Overpressure Limit: 1.5 x Full Scale
- Housing Material: Stainless Steel 316L
- Electrical Connector: Kovar Pin
- Power Supply: 10 VDC, 2 mA
- Response Time: 1 ms (10%-90%)
- Media Compatibility: Stainless Steel and Viton for gases and liquids
Buy the INFINITG Series PS781 Pressure Sensor: PS781-02G0L1
Purchase the INFINITG PS781-02G0L1 pressure sensor online today to ensure accurate and reliable measurement of gauge pressure across various industrial and HVAC systems. Featuring a stainless steel 316L housing, wide temperature compensation, and excellent stability, this sensor provides precise electrical signals through a Kovar pin connector, suitable for demanding environments. Its robust design, long-term stability, and 0-70kPa range make it an essential component for process control, level measurement, calibration, and pressure checking applications, ensuring optimal performance and durability over time.
Get INFINITG PS781-02G0L1 today—built for precision and long-lasting durability in industrial pressure measurement applications.
