L-COM TRD795ZBLK2M Ethernet Shielded Cable

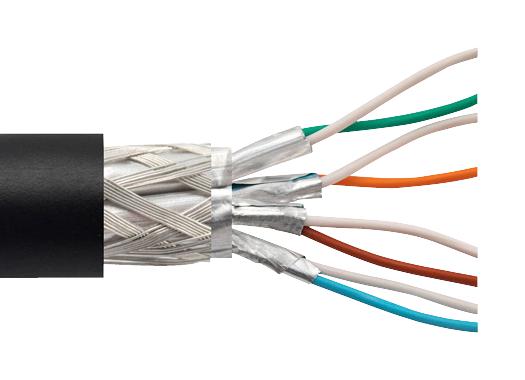

The L-com TRD795ZBLK-2M is a 2-meter, Category 7 Ethernet cable assembly designed for high-speed data transmission and noise immunity in network environments. It features a double shielded construction with an overall braid shield and individually foil-shielded pairs, providing excellent interference protection. The cable has a black LSZH (low smoke zero halogen) jacket, rated for 30V, with a flexible diameter of 0.236 inches (6.0 mm). Operating from -10°C to +80°C, it utilizes 26 AWG stranded copper conductors supporting up to 10 Gigabit Ethernet, ideal for data centers and networking projects.
L-COM TRD795ZBLK2M Ethernet Shielded Cable Specifications:
- Jacket Material: Low Smoke Zero Halogen (LSZH), black
- Cable Lengths: 0.5m, 1m, 2m, 3m, 5m, 7.5m, 10m, 15m
- Conductors: 26 AWG stranded copper
- Shielding: Aluminum/polyester foil shielding for each twisted pair, overall tin-plated copper braid shield
- Operating Temperature: -10°C to +80°C
- Voltage Rating: 30V
- Wiring Map: Standard T568A/T568B wiring
- Flame Rating: IEC 60332-1
- Insulation Color: White, orange, green, blue, brown
- Connector Type: RJ45 modular plug, shielded, with snagless boot
- Application: High-speed Ethernet, Gigabit Ethernet, Category 7 cabling
- Compliance: TIA-568 compatibility, suitable for data centers and industrial network deployments
Buy the L-com TRD795ZBLK2M – Reliable High-Speed Ethernet for Industrial Applications
Enhance your network with the L-com TRD795ZBLK-2M, a high-quality Category 7 shielded Ethernet cable designed for maximum noise immunity and high-speed data transfer. Featuring double shielding with foil and braid, it ensures minimal interference, making it perfect for data centers, industrial environments, and demanding corporate networks. The durable black LSZH jacket provides safety and flexibility, supporting up to 10 Gigabit Ethernet with reliable RJ45 connectors on each end. Order online now to secure a robust and easy-to-install networking solution that guarantees high performance and long-lasting durability.
Order your L-com TRD795ZBLK-2M Ethernet cable today and experience dependable performance for your demanding networking projects.
Frequently Asked Questions
Where can I buy L-COM TRD795ZBLK2M?
You can click on the BUY or RFQ button to purchase TRD795ZBLK2M from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part TRD795ZBLK2M?
You can download the TRD795ZBLK2M datasheet or visit the L-COM website for support.
Who is the manufacturer of TRD795ZBLK2M?
L-COM
