L-COM PS783I18SL1 Sealed Gauge Pressure Sensor

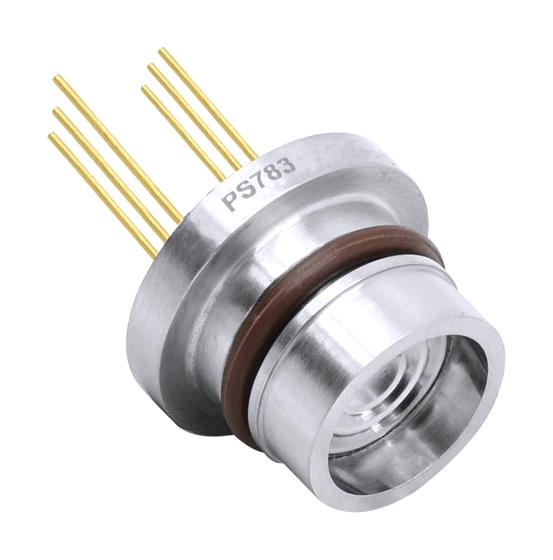

The PS783-118SL1 is a highly stable and reliable sealed gauge pressure sensor with stainless steel 316L housing and a diameter of 12.6 mm. It features wide temperature compensation, zero correction, and optimized performance for middle to high pressures up to 35 MPa. The sensor converts measured pressure into electrical signals via a silicon die, making it suitable for industrial process control, level measurement, gas and liquid pressure testing, and aviation inspections. Its robust, compact design ensures durability across challenging environments, with excellent long-term stability and thermal accuracy.
L-COM PS783I18SL1 Sealed Gauge Pressure Sensor Specifications:
- Pressure Range: 0-35 MPa
- Linearity: +0.15 +0.2 % Full Scale
- Repeatability: +0.05 +0.075 % Full Scale
- Hysteresis: +0.05 +0.075 % Full Scale
- Full Scale Output: 70 mV DC
- Zero Output: 3 mV DC
- Zero Thermal Error at 35°C: +0.75 % Full Scale/°C
- Span Thermal Error at 35°C: 0.75 % Full Scale/°C
- Compensated Temperature Range: -10 to 80°C
- Long Term Stability: +0.1 +0.2 % Full Scale
- Overpressure: 1.5 x Full Scale
- Material: Stainless Steel 316L diaphragm and housing
- Electrical Connection: Kovar pin
- Weight: 8.16 g
- Operating Temperature: -40°C to 125°C
- Shock Resistance: 100g, 11ms
- Environmental Compatibility: Compatible with liquids and gases compatible with stainless steel and Viton
- Certifications: RoHS and CE compliant
Buy the Buy INFINITG Pressure Sensor Part Number PS783I18SL1 Online
Enhance your industrial or aviation pressure measurement systems with the INFINITG PS783-118SL1. This robust, compact sensor features a stainless steel 316L housing, measuring pressures up to 35 MPa with high accuracy and stability. Its wide temperature compensation ensures reliable performance across diverse environments. Easy to connect with Kovar pins, it is ideal for liquid and gas pressure testing, process control, and level measurement applications. Purchase online today for precise, durable pressure detection that meets industry standards.”
Buy INFINITG PS783I18SL1 pressure sensor now and experience unmatched reliability, wide temperature range, and durable stainless steel construction for industrial and aerospace needs.
