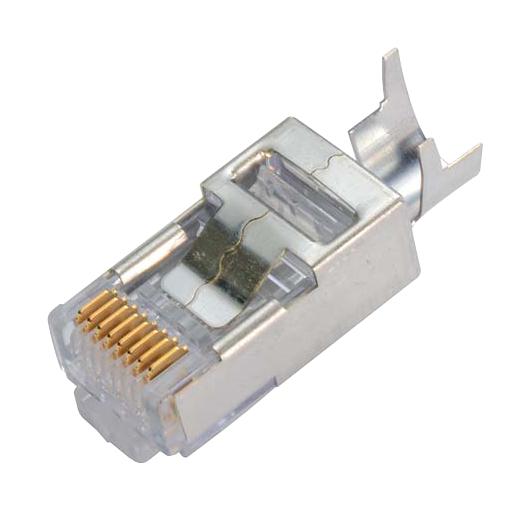

L-COM TSP8048C5S10PK High-Speed Shielded RJ45 Plug
The TSP8048C5S10PK is a high-speed, shielded modular RJ45 plug designed for reliable industrial networking applications. Made from flame-retardant polycarbonate with multiple plating options including selective 24-carat hard gold, it offers excellent durability and corrosion resistance. The plug accommodates conductors with a diameter range of 0.048 to 0.144 inches, supports over 100,000 insertion/extraction cycles, and meets Category 6 performance standards. Suitable for both stranded and solid conductors, it includes a conductive load bar for optimal connection integrity and is sold in packs of 10 for easy deployment across industrial environments.
L-COM TSP8048C5S10PK High-Speed Shielded RJ45 Plug Specifications:
- Material: Polycarbonate with flame retardant UL 94V-0
- Plating: 24 Carat hard gold, over 100 micro-inch minimum nickel plate
- Contact Material: Phosphor bronze
- Contact Plating: Gold, nickel options available
- Operating Temperature: -40°C to +85°C
- Insertion/Extraction Life: Over 100,000 cycles
- Current/Voltage Rating: 30 V AC/DC at 1.5 A
- Conductor Range: 0.048 to 0.144 inches (diameter)
- Shield Material: Not specified but shielded version available
- Plug Tolerance: Not specified
- Compliance: Meets Category 6 ANSI/BA S68-C.2, UL Listed 94V-0
Buy the Berg Optics TSP8048C5S10PK – Reliable High-Speed Shielded RJ45 Connector for Industrial Applications
Purchase the Berg Optics TSP8048C5S10PK shielded RJ45 connector now to enjoy reliable performance and excellent durability for industrial networking. This high-speed modular plug features gold-plated contacts, robust polycarbonate housing, and can withstand over 100,000 insertion cycles. Designed for conductors from 0.048 to 0.144 inches in diameter, it supports Category 6 standards, making it ideal for high-speed data transmission. Sold in convenient packs of 10, this connector is suitable for demanding industrial environments requiring consistent, high-quality network connections.
Order your Berg Optics TSP8048C5S10PK high-speed shielded modular plug today and ensure dependable high-performance networking in your industrial projects.
Frequently Asked Questions
Where can I buy L-COM TSP8048C5S10PK?
You can click on the BUY or RFQ button to purchase TSP8048C5S10PK from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part TSP8048C5S10PK?
You can download the TSP8048C5S10PK datasheet or visit the L-COM website for support.
Who is the manufacturer of TSP8048C5S10PK?
L-COM
