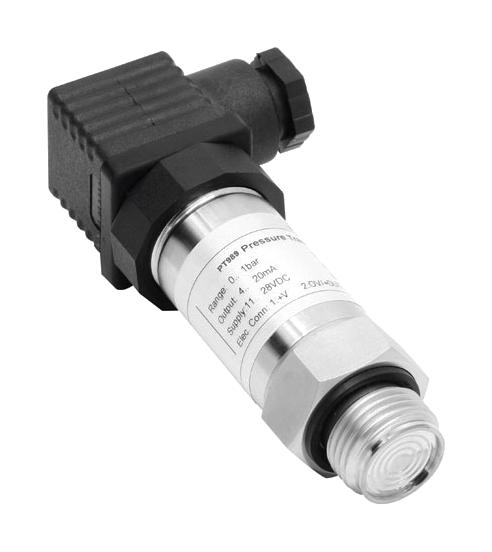

L-COM PT989200PV1J22B1C10G Gauge Pressure Transmitter
The PT989200PV1J22B1C10G is a high-precision, gauge pressure transmitter designed for industrial applications. Made of stainless steel, it measures pressures up to 200 psi with 0-5V output. Compact and lightweight, it features a DIN 43650 electrical connector and NPT 1/2 male process connection, suitable for measuring various media such as gases and liquids in chemical, water management, metallurgy, and mining industries. Its environmental resilience includes IP65 ingress protection, with stability and thermal error compensation, ensuring reliable long-term performance in harsh conditions.
L-COM PT989200PV1J22B1C10G Gauge Pressure Transmitter Specifications:
- Pressure Range: 0-200 psi
- Output Signal: 0-5 VDC
- Power Supply: 11-28 VDC
- Accuracy: 0.5% full scale
- Zero Thermal Error: +0.03% per °C
- Span Thermal Error: +0.03% per °C
- Temperature Range (Operating): -30°C to 80°C
- Ingress Protection: IP65
- Material: Diaphragm Stainless Steel 316L, Tubing Stainless Steel 304
- Electrical Connection: DIN 43650 connector
- Process Connector: NPT 1/2 Male
- Long Term Stability: +0.3% of full scale per year
- Overpressure: 1.5 times full scale
- Certifications: ROHS, CE compliant
Buy the INFINITYG PT989200PV1J22B1C10G – Reliable Gauge Pressure Transmitter for Industrial Applications
Enhance your industrial process control with the PT989200PV1J22B1C10G gauge pressure transmitter. Constructed from stainless steel, it provides accurate measurements up to 200 psi with a 0-5V output, compatible with 11-28 VDC power supply. Its compact, lightweight design with DIN 43650 connector and NPT 1/2 process connection makes installation straightforward in chemical, water management, metallurgy, and mining applications. Featuring IP65 ingress protection, thermal error compensation, and excellent long-term stability, it is designed to perform reliably in harsh environments, ensuring continuous, precise pressure monitoring.
Get INFINITYG PT989200PV1J22B1C10G today—built for precision and long-lasting durability in demanding industrial environments.
