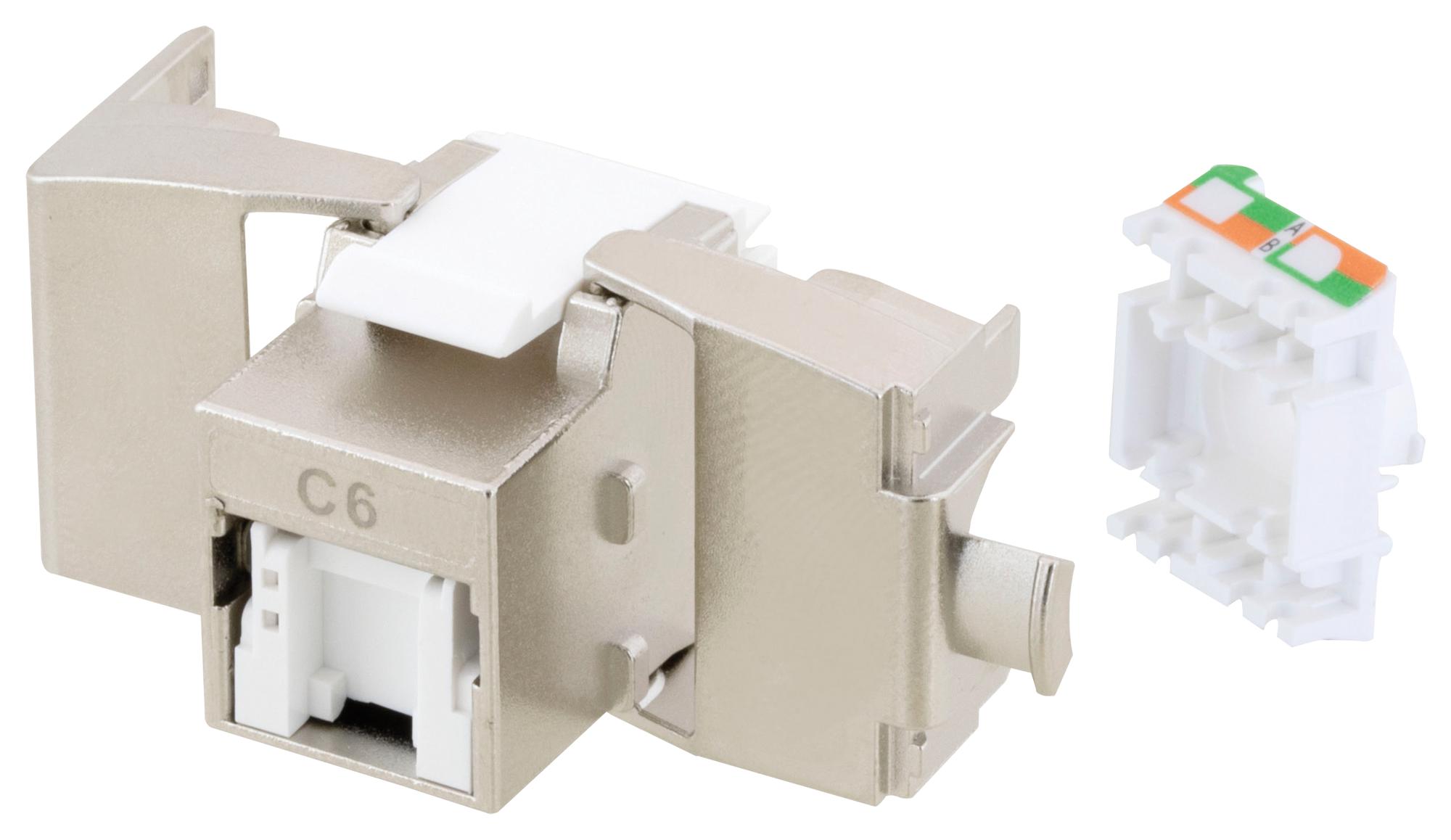

L-COM RJTLC6SPOE RJ45 Shielded Keystone Jack
The C6 Shielded Keystone Jack RJ45 with PoE+ features nickel silver alloy shielding and UL94V-0 rated PC housings. It provides Category 6 performance compatible with TIA-568-C.2 and IEC standards, supporting Power over Ethernet Plus (PoE+) applications with a 750 mating cycle life. Made with phosphor bronze contacts plated with 50μ
L-COM RJTLC6SPOE RJ45 Shielded Keystone Jack Specifications:
- Shielding Material: Nickel Silver Alloy
- Housing: PC, UL94V-0
- Contacts: Phosphor Bronze, 50μ" Gold Plated
- IDC Terminals: Phosphor Bronze, Tin over Nickel
- Insertion Life: 750 cycles
- Operating Temperature Range: -10°C to 60°C
- Storage Temperature Range: -40°C to 68°C
- Insulation Resistance: 500 MΩ
- Dielectric Withstanding Voltage: 1000 V AC
- Current Rating: 1.5 Amps
- Max Wire Size: 22-24 AWG solid
- Compatible with RJ45 8P8C plugs
- Certifications: Category 6, IEC, IEEE 802.3 AT PoE+
Buy the Connectivity Series RJ45 Shielded Jack: RJTLC6SPOE
Purchase the RJ45 Shielded Keystone Jack online today to benefit from high-quality shielded Ethernet connections with PoE+ support. Engineered for Category 6 networks, it features nickel silver alloy shielding, durable UL-rated plastics, and phosphor bronze contacts with gold plating for optimal signal integrity. Designed for demanding environments, it offers a robust 750 mating cycle life, operates from -10°C to 60°C, and is compatible with 8P8C plugs. Perfect for reliable, high-performance network installations in professional settings.
Order your Connectivity Series RJ45 Shielded Jack today and ensure reliable high-speed Ethernet and PoE+ connectivity for your professional network needs.
Frequently Asked Questions
Where can I buy L-COM RJTLC6SPOE?
You can click on the BUY or RFQ button to purchase RJTLC6SPOE from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part RJTLC6SPOE?
You can download the RJTLC6SPOE datasheet or visit the L-COM website for support.
Who is the manufacturer of RJTLC6SPOE?
L-COM
