L-COM TFDP501100 PROFINET Ethernet Cable

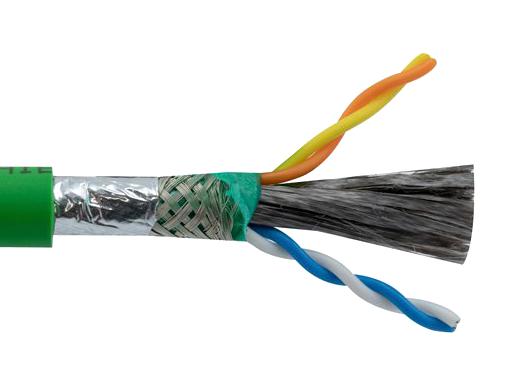

This shielded Ethernet cable features a 22 AWG solid tinned copper conductor, high-density polyethylene insulation, and a thermoplastic elastomer Green jacket. It offers excellent shielding with 75% copper braid and 100% foil coverage, providing immunity against electromagnetic interference. Designed for PROFINET applications, it supports PoE compliance up to 100 meters and meets UL AWM 2463 and NEC standards. The cable resists sunlight, cutting, and machining oils, making it suitable for industrial environments with temperature ratings from -55°C to +105°C and a maximum voltage of 600V. Its compact construction ensures durability and reliable network performance.
L-COM TFDP501100 PROFINET Ethernet Cable Specifications:
- Conductors: 22 AWG solid tinned copper
- Insulation: High-density polyethylene, 0.012" walls
- Jacket: Thermoplastic elastomer, green, 0.043" wall thickness
- Overall Diameter: 0.305" (max. 0.315")
- Shielding: 75% copper braid, 38 AWG, and 100% foil shield
- Temperature Range: -55°C to +105°C
- Voltage Rating: 600V
- Impedance: 100 +/- 15 ohms, 1-100 MHz
- Capacitance: 13.5 pF/ft at 1 MHz
- Dielectric Withstanding Voltage: 2000V RMS
- Compliance: UL AWM 2463, NEC Type PLTC & TC, RoHS
Buy the Sterlite Series PROFINET Ethernet Cable: TFDP501100
Purchase the Sterlite PROFINET Ethernet Cable TFDP501100 online today to ensure high-quality industrial network connectivity. This shielded cable features 22 AWG conductors with durable insulation and a robust thermoplastic elastomer jacket designed for challenging environments. Its shielded design provides excellent EMI protection, while its conforming standards guarantee safety and compatibility. Ideal for PROFINET applications, it supports full POE capabilities up to 100 meters, ensuring dependable performance in industrial automation, manufacturing, and control systems. Buy now for reliable, durable connectivity.
Buy Sterlite TFDP501100 now and experience unmatched reliability and performance in industrial networking environments.
Frequently Asked Questions
Where can I buy L-COM TFDP501100?
You can click on the BUY or RFQ button to purchase TFDP501100 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part TFDP501100?
You can download the TFDP501100 datasheet or visit the L-COM website for support.
Who is the manufacturer of TFDP501100?
L-COM
