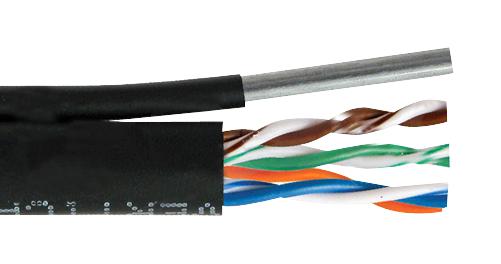

L-COM TOAC5BLK Outdoor Communication Cable
The product is a 1000-foot bulk cable designed for outdoor use, featuring four twisted pairs of 24 AWG solid bare copper conductors. It includes PE insulation with an average thickness of 0.205 mm, a UV-rated LLDPE outer jacket in black, and a galv. steel messenger for support. The cable boasts a temperature rating of -40°C to 70°C, complies with IEC-332-1 flammability standards, and is identified with sequential foot markers. Suitable for telecom and networking applications, it offers impedance of 1.0-350 MHz, low pair-to-ground capacitance, and is shipped on a reel for easy installation.
L-COM TOAC5BLK Outdoor Communication Cable Specifications:
- Conductor: 24 AWG solid bare copper
- Insulation: PE, average thickness 0.205 mm
- Twisted Pair Diameter: 1.92 mm
- Messenger: Galvanized steel, 21.30 mm
- Jacket: UV-rated LLDPE, black, 80 x 0.65 mm wall thickness
- Outer Diameter: 5.40 x 2.60 mm
- Rip Cord: Nylon
- Temperature Rating: -40°C to 70°C
- Flammability: IEC-332-1
- Impedance: 1.0-350 MHz
- Pair-to-Ground Capacitance Unbalance: <330 pF/100m
- Maximum D.C. Resistance at 20°C: 93.8 ohms/km
- Voltage Rating: UL, ETL certified
- Packaging: Reel
- Color Coding: Blue/White-Blue, Orange/White-Orange, Green/White-Green, Brown/White-Brown
- Certifications: CE2011/65/EU, RoHS
- Length Tolerance: +5/-0 feet for 300+ feet, standard tolerances apply
Buy the Lcom Series Cat5e UTP Outdoor Cable: TOAC5BLK
Purchase the Lcom outdoor communication cable online today to ensure a durable, outdoor-rated solution for your networking needs. Featuring four twisted pairs of 24 AWG copper, UV-resistant black jacket, and galvanized steel messenger, this cable is ideal for aerial OSP installations. Its construction complies with IEC flammability standards and provides impedance suitable for high-frequency data transfer. Delivered on a reel for easy handling, this product guarantees long-lasting performance in outdoor environments, making it the perfect choice for seamless outdoor communication networks.
Buy Lcom TOAC5BLK outdoor Cat5e UTP cable with messenger now and experience reliable outdoor telecommunications installation with high-quality materials.
Frequently Asked Questions
Where can I buy L-COM TOAC5BLK?
You can click on the BUY or RFQ button to purchase TOAC5BLK from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part TOAC5BLK?
You can download the TOAC5BLK datasheet or visit the L-COM website for support.
Who is the manufacturer of TOAC5BLK?
L-COM
