L-COM PS783I17SL1 Pressure Sensor

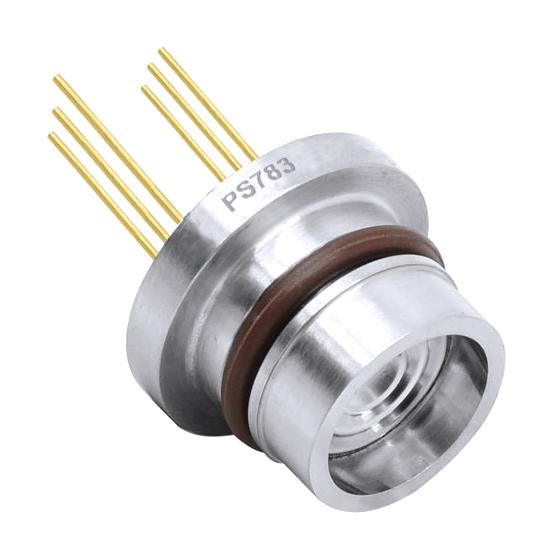

The PS783-117SL1 is a compact, highly stable pressure sensor designed for accurate measurement of liquids and gases up to 20 MPa. Crafted from stainless steel 316L with a 12.6 mm diameter, it features wide temperature compensation, zero correction, and excellent long-term stability. Its sealed gauge design makes it ideal for industrial process control, level measurement, and airtight applications such as cooling systems and aviation. The device transforms pressure into an electrical signal, offering reliable performance under varying environmental and operational conditions.
L-COM PS783I17SL1 Pressure Sensor Specifications:
- Pressure Range: 0-20 MPa
- Linearity: +0.15 +0.2 % Full Scale
- Repeatability: +0.05 +0.075 % Full Scale
- Hysteresis: +0.05 +0.075 % Full Scale
- Full Scale Output: 70 mV DC
- Zero Output: 3 mV DC
- Zero Thermal Error @35°C: +0.75 H % Full Scale/°C
- Span Thermal Error @35°C: 40.75 H % Full Scale/°C
- Compensated Temperature Range: -10 to 80°C
- Long Term Stability: +0.1 +0.2 % Full Scale
- Overpressure: 1.5 x Full Scale
- Material: Stainless Steel 316L
- Electrical Connector: Kovar pin
- Environmental Temperature: -40°C to 125°C
- Shock Resistance: 100g for 11 ms
- Viton O-Ring for sealing
- Weight: 8.16 grams
- Power Supply: 10 VDC
- Power Supply Current: 2 mA
- Response Time: 1 ms
- Media Compatibility: Stainless steel compatible liquids and gases
- Certifications: RoHS and CE compliant
Buy the Buy INFINITG Pressure Sensor Part Number PS783I17SL1 Online
Discover the dependable INFINITG pressure sensor PS783-117SL1, engineered for high accuracy in industrial, aviation, and process control applications. With a compact stainless steel 316L housing measuring just 12.6 mm in diameter, it offers wide temperature compensation, excellent stability, and sealed gauge measurement up to 20 MPa. Designed for easy integration, it features a Kovar pin electrical connector, Viton O-ring sealing, and is compatible with various fluids. Perfect for remote monitoring, liquid pressure systems, and demanding environments, buy online today for trusted performance and quick delivery.
Order your INFINITG PS783-117SL1 pressure sensor today and ensure precise liquid and gas pressure measurements with reliable stability and compact design.
Frequently Asked Questions
Where can I buy L-COM PS783I17SL1?
You can click on the BUY or RFQ button to purchase PS783I17SL1 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part PS783I17SL1?
You can download the PS783I17SL1 datasheet or visit the L-COM website for support.
Who is the manufacturer of PS783I17SL1?
L-COM
