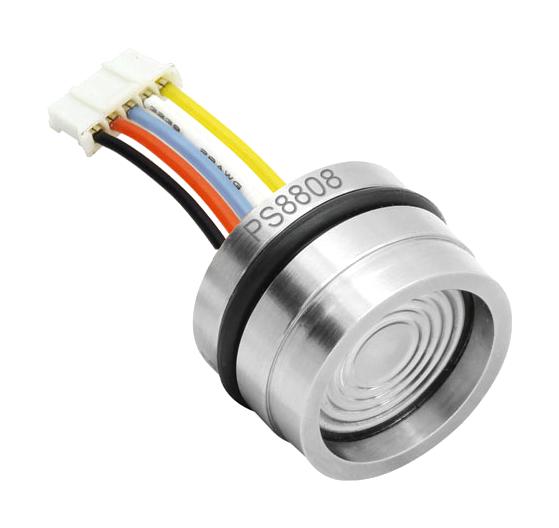

L-COM PS8808700K3CBNG Pressure Sensor
The PS8808 Series pressure sensor is an industrial-grade gauge pressure transducer designed for precise liquid and gas pressure measurement applications. Made with stainless steel 316L and isolated oil-filling construction, it offers high accuracy of ±0.5% full scale and excellent long-term stability. Equipped with temperature compensation, it provides digital output via I2C interface, making it ideal for process control, calibration, and HVAC systems. Its robust construction ensures durability in harsh environments, with operating temperatures from -10°C to 80°C, and certification for CE and RoHS compliance.
L-COM PS8808700K3CBNG Pressure Sensor Specifications:
- Pressure Range: 0-700 kPa
- Accuracy: ±0.5% Full Scale
- Temperature Range (Operating): -10°C to 80°C
- Storage Temperature: -40°C to 125°C
- Electrical Connection: 5-pin PH2.0 with Black-IN, Red +IN, Blue SCL, White SDA, Yellow NULL
- Output Signal: 5%-95%
- Power Supply: 3.3V DC ±0.1V
- Power Consumption: 2.5 mA
- Measurement Type: Gauge Pressure
- Material: Stainless Steel 316L diaphragm and housing
- Shock & Vibration Resistance: 10g, 20Hz-2000Hz, Impact: 100g, 11ms
- Certifications: CE, RoHS
- Long-term Stability: 0.3% Full Scale/year
- Overpressure Limit: 1.5x Full Scale
Buy the INFINITYG Series Pressure Sensor: PS8808-700k3CBNG
Purchase the INFINITYG PS8808 Pressure Sensor today for reliable liquid and gas pressure measurement. Designed with stainless steel construction and digital I2C output, it ensures high accuracy and durability for industrial, HVAC, and calibration applications. Its robust design withstands harsh environments with operating temperatures from -10°C to 80°C, while its certifications guarantee quality. Easily integrated into your systems, this compact sensor provides precise data for process control and automation. Order now to enhance your pressure measurement solutions with confidence.
Get INFINITYG PS8808-700k3CBNG today—built for precision and long-lasting durability in industrial pressure measurement.
