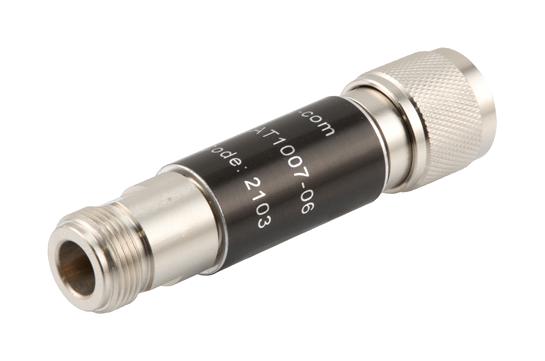

L-COM LCAT100706 RF Attenuator
The 2W/6 dB Fixed Attenuator with N male to N female connectors is designed for high-frequency applications up to 18 GHz. Crafted from brass with nickel plating, this coaxial RF attenuator features a 6 dB attenuation and excellent impedance matching. It provides reliable performance in testing, instrumentation, and prototyping, offering a maximum input power of 2 Watts continuous and withstanding temperatures from -55°C to +125°C. Compact and durable, it is ideal for protecting sensitive equipment while ensuring signal integrity in laboratory and industrial environments.
L-COM LCAT100706 RF Attenuator Specifications:
- Frequency Range: DC to 18 GHz
- Impedance: 50 Ohms
- Nominal Attenuation: 6 dB
- Attenuation Accuracy: ±0.6 dB
- VSWR: <1.40:1
- Input Power (CW): 2 Watts, derated linearly to 0.5W at 125°C
- Peak Power Handling: 500 Watts (0.5kW) for 5us pulse with 0.4% duty cycle
- Connectors: N Male to N Female
- Connector Material: Brass, Gold Beryllium Copper, Gold Plating
- Body Material: Brass with Nickel Plating
- Size: Length 3.03 inches (76.96 mm), Diameter 0.787 inches (19.99 mm)
- Weight: 0.176 lbs (79.83 g)
- Operating Temperature Range: -55°C to +125°C
Buy the INFINITG 2W/6 GB Fixed Attenuator – Reliable RF Attenuator for Industrial Applications
Purchase the INFINITG RF Attenuator with N connectors now and enhance your testing and measurement setup. Designed for frequencies up to 18 GHz, this 6 dB fixed attenuator offers high reliability, excellent impedance matching, and a compact brass nickel body. Ideal for protecting sensitive instrumentation, reducing signal levels, and ensuring optimal performance across diverse industrial and laboratory applications. Available for quick online ordering, this durable component will improve accuracy and safety in your RF systems, making it a valuable addition to any technical toolkit.
Order your INFINITG SeriesLCAT1007-06 6 dB Fixed Attenuator today and ensure precise signal control in your high-frequency projects.
Frequently Asked Questions
Where can I buy L-COM LCAT100706?
You can click on the BUY or RFQ button to purchase LCAT100706 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCAT100706?
You can download the LCAT100706 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCAT100706?
L-COM
