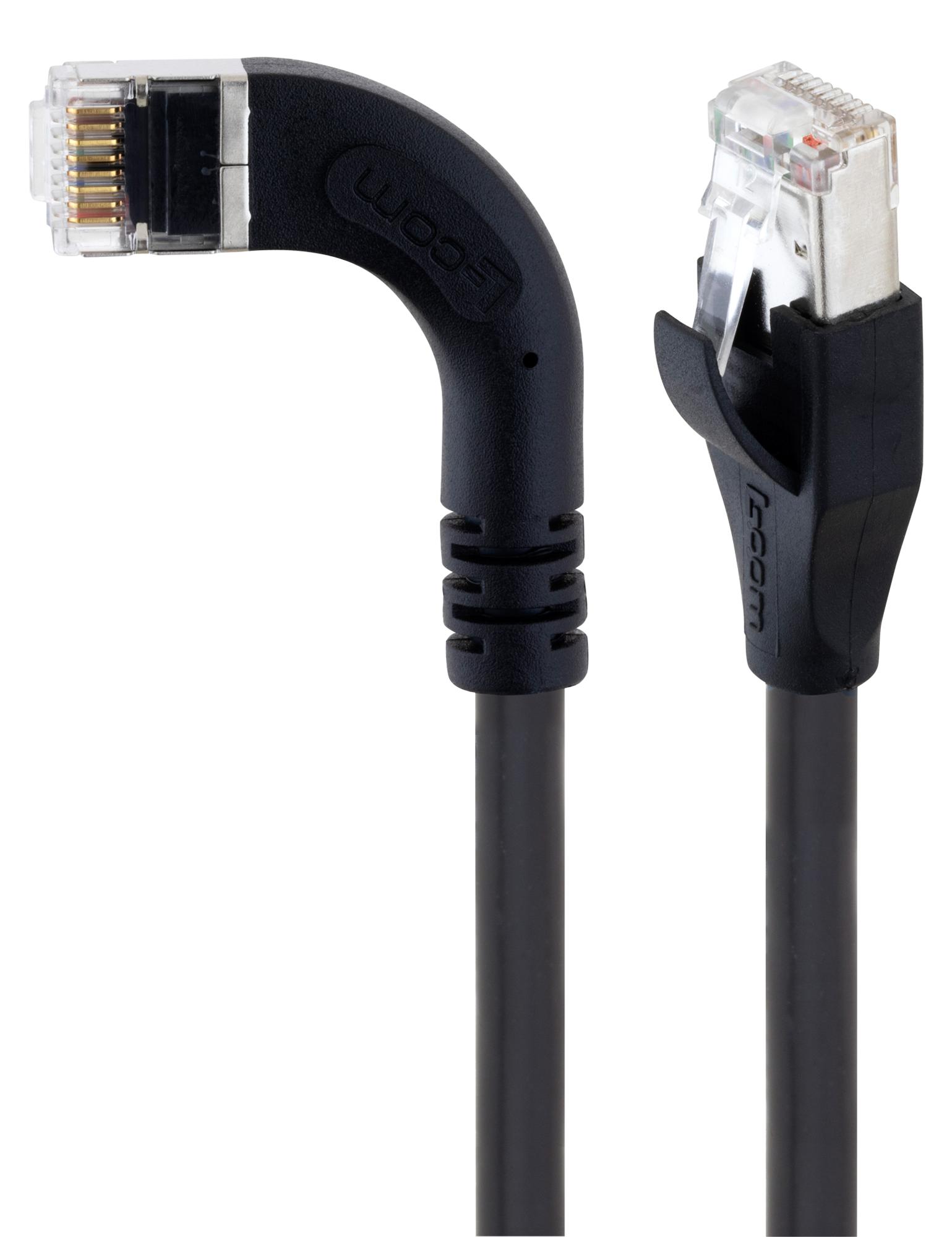

L-COM TRD855SRA6DBL05M Shielded Ethernet Patch Cable
L-com's patented braid-shielded right-angle Ethernet patch cables feature a specialized channel separator and load bar design, ensuring true Cat5e performance while allowing a right-angle bend. The fully shielded construction minimizes EMI and RFI interference, making them ideal for dense connectivity and tight spaces in data centers. Built with high-flex polyurethane jackets and 26 AWG stranded, tinned copper conductors, they are rated for up to 10 million flex cycles, suitable for continuous motion and automation. Operating from -20°C to 80°C, these cables deliver reliable, interference-free network connections.
L-COM TRD855SRA6DBL05M Shielded Ethernet Patch Cable Specifications:
- Connector Type: Shielded RJ45 modular plug (8P8C), gold plated contacts
- Shield Material: Copper foil LSZH
- Jacket Material: High-flex polyurethane, dark blue
- Conductor: Four twisted pairs, 26AWG stranded, tinned copper
- Temperature Range: -20°C to +80°C
- Cable Length Options: 0.5M, 1M, 2M, 3M, 4M, 5M, 10M
- Overall Diameter: Nominal diameter approximately 0.228 inches (5.80 mm)
- Design: Right-angle molded boot, slip-on snagless boot
- Shielding: Copper foil, braided copper
- Rated for up to 10 million flex cycles, suitable for continuous motion applications
- Compliance: RoHS Directive E201 1/65
- Operating frequency: Up to Cat5e standards, high-performance data transmission
- Color: Dark blue jacket
- Temperature Rating: -20°C to +80°C
- Certifications: Complies with TIA-1096 standards
Buy the Buy L-com Shielded Ethernet Cable Part Number TRD855SRA6DBL05M Online
Purchase the L-com Shielded Ethernet Patch Cable TRD855SRA6DBL05M online today for high-flex durability, superior shielding, and reliable Cat5e performance. Ideal for tight spaces, data centers, and automation systems, this high-quality cable features a dark blue polyurethane jacket, 26 AWG stranded tinned copper conductors, and a right-angle molded boot for easy installation. Rated for up to 10 million flex cycles, it ensures long-lasting, interference-free data transmission under demanding conditions. Make your network reliable with this expertly crafted, shielded Ethernet solution—order now!
Get L-com TRD855SRA6DBL05M today—designed for high-flex, shielded network connections and reliable automation performance.
