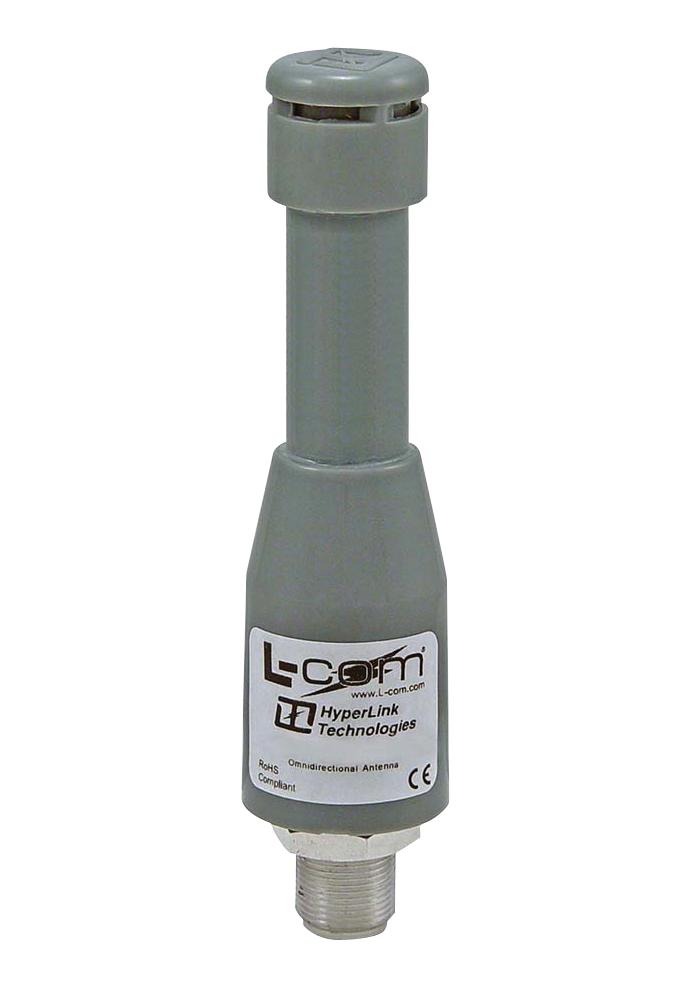

L-COM HGV245803U Dual-Band Omnidirectional Antenna
A 2.4/5.8 GHz dual-band omnidirectional antenna designed for cost-effective multipoint wireless applications. Features a durable UV-stable fiberglass radome with a vented end cap and drain holes at the base for reliable outdoor use. Equipped with an integral N-female connector and includes a mast mounting kit. Weatherproof construction suitable for various outdoor wireless setups.
L-COM HGV245803U Dual-Band Omnidirectional Antenna Specifications:
- Frequency: 2400-2500/4900-5850 MHz
- Gain: +1 dBi at 2400-2500 MHz, 3.5 dBi at 4900-5850 MHz, 5 dBi, 7 dBi
- Polarization: Vertical
- Vertical Beam Width: 55°, 45°, 20°
- Horizontal Beam Width: 360°
- Impedance: 50 Ohm
- Max. Input Power: 50 Watts
- VSWR: < 2.0:1 on lower band, < 2.5:1 on higher band
- Lightning Protection: DC Short
- Weight: 1.25 lbs (HGV-2458-03U), 1.36 lbs (HGV-2458-05U), including mounting kit
- Length: 11.6 in (295mm) for HGV-2458-03U, 19.5 in (495mm) for HGV-2458-05U, HGV-2458-07U unspecified
- Base Diameter: 4.7 in (120mm)
- Radome Diameter: 0.75 in (19mm)
- Operating Temperature: -40°C to 85°C (-40°F to 185°F)
- Connector: N-Female (bulkhead type)
- Mast Size Diameter: 1.2 to 2.0 in (30 to 50mm)
- Constructed for all weather operation with vented end cap and drain holes
- RoHS Compliant
Buy the L-com Series HGV-2458 Dual-Band Omnidirectional Antennas: HGV245803U
Discover the high performance and reliable outdoor wireless coverage provided by our dual-band omnidirectional antenna. Designed with a durable UV-stable fiberglass radome, vented end cap, and drain holes, it ensures weatherproof operation. The built-in N-female connector and included mounting kit make installation easy on masts up to 2 inches in diameter. Ideal for multipoint WiFi, WiMAX, and homeland security applications, this antenna offers excellent coverage and resilience, supporting frequencies from 2.4 to 5.8 GHz with up to 50 Watts power capacity for dependable wireless connectivity.
Order your L-com Series HGV-2458 dual-band omnidirectional antenna today and enhance your outdoor wireless network with reliable, cost-effective coverage.
