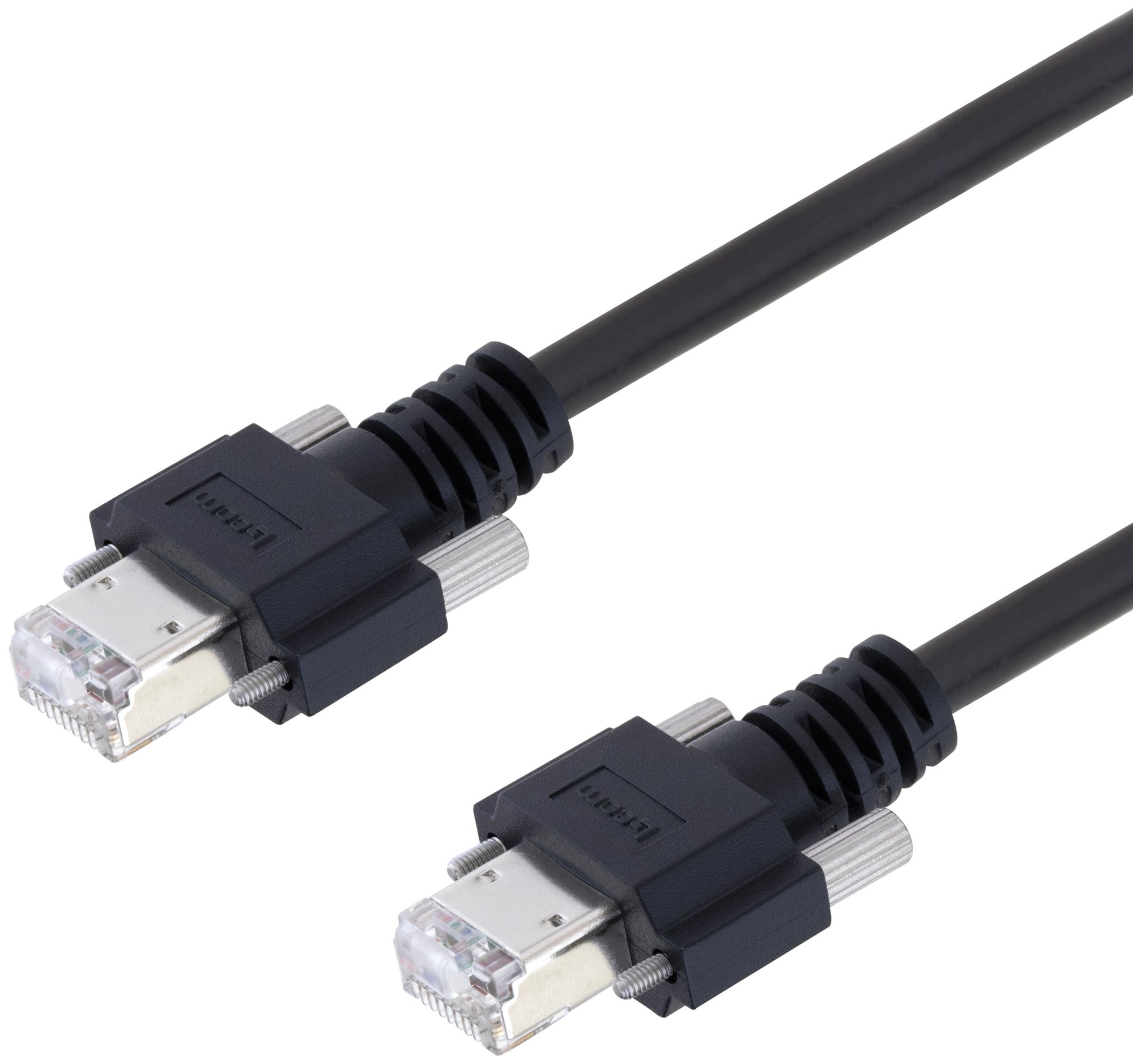

L-COM TRG516P6D1M Industrial Ethernet Cable
The TRG516-P6D Series consists of ultra-flexible, braided shield Ethernet cables designed for continuous motion and automation applications where standard cables tend to fail due to extreme flexing. These cables are rated for up to 10 million flex cycles at a length of 1.82 inches (46.4 mm). They feature shielded RJ45 connectors on both ends, with options for Category 5e or Gigabit Ethernet connectivity, suitable for industrial automation, process control, manufacturing, robotics, and telecommunications environments. The cables include a tinned copper braided shield and are EIA-568 color-coded for easy installation and identification.
L-COM TRG516P6D1M Industrial Ethernet Cable Specifications:
- Cable Type: High flex, CAT5e or Gigabit Ethernet
- Conductor: Four twisted pairs, 26 AWG stranded, tinned copper
- Shield: Tinned copper braided shield
- Jacket: PVC, dark blue, with heat resistance
- Temperature Range: -20°C to +80°C
- Flex Life: Rated for 10 million flex cycles
- Connector: Shielded RJ45 plugs without latch
- Contacts: Gold plated
- Length Options: 1.0 m (3.28 ft), 2.0 m (6.56 ft), 3.0 m (9.84 ft), 4.0 m (13.12 ft), 5.0 m (16.41 ft), 10.0 m (32.82 ft)
Buy the Industrial Ethernet Series TRG516 P6D: TRG516P6D1M
Secure your industrial networking with the high-flex, braided shield Ethernet cables from the TRG516-P6D Series. Designed for automation, robotics, and process control, these cables support up to 10 million flex cycles, ensuring durability in demanding environments. With shielded RJ45 connectors, optional Category 5e or Gigabit Ethernet support, and color-coded wiring, installation is straightforward. Choose your length from 1 to 10 meters for versatile applications. Order online today and enhance your industrial communication systems with reliable, high-performance cables.
Order your industrial Ethernet Series TRG516P6D1M today and ensure reliable high-flex connectivity for automation and telecommunications.
