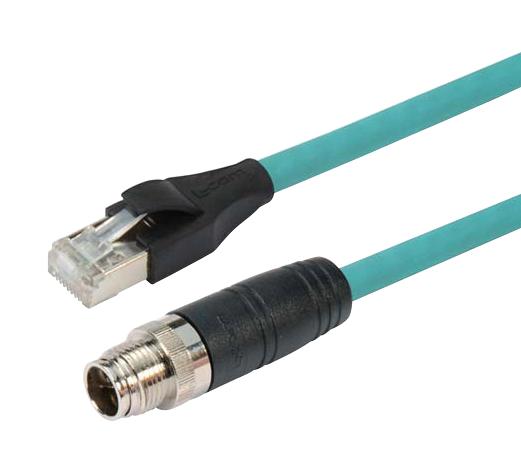

L-COM TRG610T6T2M Industrial Ethernet Cable
The TRG610T6T2M is a high-performance outdoor rated Ethernet cable assembly featuring a shielded M12 connector and RJ45 interface. It is designed with stranded 28AWG tin-plated copper conductors within a flexible thermoplastic elastomer jacket, suitable for industrial environments. The cable provides IP67 ingress protection, operational temperature from -40°C to +75°C, and resistance to oil, sunlight, and weld splatter. Ideal for robust, high-speed data transmission in demanding conditions, it complies with IEC 61076-2-109 standards and RoHS directives, ensuring reliable connectivity for automation and control applications.
L-COM TRG610T6T2M Industrial Ethernet Cable Specifications:
- Connector Type: M12 shield male (both sides), RJ45 housing in polycarbonate, shielded with brass, nickel-plated
- Cable Type: CAT 6A high flex, twisted pairs, 28AWG stranded tinned copper conductors
- Jacket Material: Thermoplastic elastomer, teal color, nominal diameter 0.275 inches
- Shielding: Aluminum/polyester foil plus tinned copper braid, provides IP67 ingress protection
- Temperature Range: -40°C to +75°C, resistant to oil, sunlight, and weld splatter
- Voltage Rating: 48 VAC/DC, Max Current: 10A
- Dimensions: Overall cable length varies, molded hood in thermoplastic polyurethane, nut and shell in nickel-plated brass
- Certifications: UL 94V-0, RoHS compliant, tested per IEC 61076-2-109
- Environmental Resistance: Oil, sunlight, weld splatter resistant, suitable for industrial environments
- Application: High-speed, durable data communication in demanding industrial and automation settings
Buy the L-COM Series TRG610T6T2M Ethernet Cable: M12 to RJ45, High Flex, IP67
Purchase the L-COM Series TRG610T6T2M Ethernet cable online now to benefit from robust, high-performance connectivity suitable for industrial automation. With IP67 ingress protection, a durable thermoplastic elastomer jacket, and shielded connectors, this high flex CAT 6A cable ensures reliable data transmission even in the toughest conditions. Easy to install, UL certified, and RoHS compliant, it is an ideal choice for demanding environments. Order today and enhance your industrial networking infrastructure with confidence and convenience.
Order your L-COM Series TRG610T6T2M Ethernet cable today and ensure reliable, high-speed connectivity in harsh industrial environments.
Frequently Asked Questions
Where can I buy L-COM TRG610T6T2M?
You can click on the BUY or RFQ button to purchase TRG610T6T2M from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part TRG610T6T2M?
You can download the TRG610T6T2M datasheet or visit the L-COM website for support.
Who is the manufacturer of TRG610T6T2M?
L-COM
