L-COM TRG881C4G05M industrial control cable

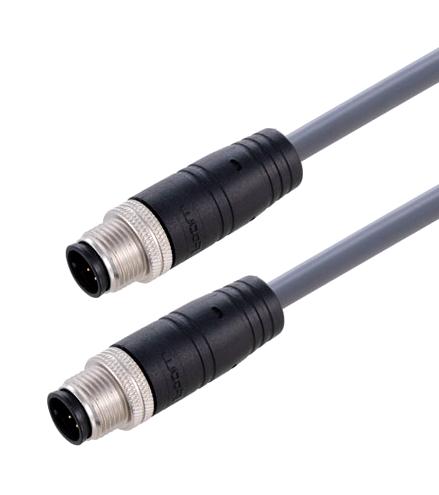

The TRG881-C4G05M is a high-quality, gray PVC jacketed cable assembly with a molded PVC hood. Designed for reliable indoor and outdoor industrial applications, it features UL94 V-0 flame resistance, UV resistance, and a temperature range of -25°C to +105°C. The assembly includes (8) strands of 24 AWG stranded tinned copper conductors, with a PVC insulation, and is rated for a maximum of 30 V AC/DC and 2A. Suitable for environmental protection with an IP67 rating when mated, it is ideal for demanding electrical connections and controllers in industrial environments.
L-COM TRG881C4G05M industrial control cable Specifications:
- Material: Molded PVC hood: black, UL94 V-0, UV resistance
- Insulator: TPU, black
- Screw Nut: brass, nickel plated
- Contacts: phosphor bronze, 15p minimum gold plated
- Nominal voltage rating: 30 V AC/DC
- Max current: 2A
- Ingress protection: IP67 when mated
- Operating temperature: -25°C to +80°C
- Cable jacket: PVC, gray, flame rating VW-1
- Cable conductors: (8) x 24 AWG stranded tinned copper
- Jacket diameter: approximately 0.205 inches (5.20 mm)
- Temperature range: -25°C to +105°C
- Overall cable length varies, with specific lengths from 0.5m to 10m available
- Certification: UL style 2517
- Environmental resistance: sunlight, moisture
Buy the L-COM TRG881-C4G05M – Reliable Industrial Control Cable for Industrial Applications
Order the L-COM TRG881-C4G05M industrial control cable online now to ensure reliable, high-quality connections for your electrical and control systems. With a rugged PVC jacket, UL94 V-0 flame resistance, UV resistance, and an IP67 rating when mated, this cable is ideal for demanding environments. Its tinned copper conductors and a temperature range of -25°C to +105°C provide durability and excellent performance. Packaged individually, it meets industry standards, making it perfect for industrial automation, machinery, and electrical installations. Buy today for trusted performance and easy installation.
Get L-COM TRG881-C4G05M today—built for precision and long-lasting durability in industrial wiring and control systems.
Frequently Asked Questions
Where can I buy L-COM TRG881C4G05M?
You can click on the BUY or RFQ button to purchase TRG881C4G05M from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part TRG881C4G05M?
You can download the TRG881C4G05M datasheet or visit the L-COM website for support.
Who is the manufacturer of TRG881C4G05M?
L-COM
