L-COM LCAD30015 RF Coaxial Adapter

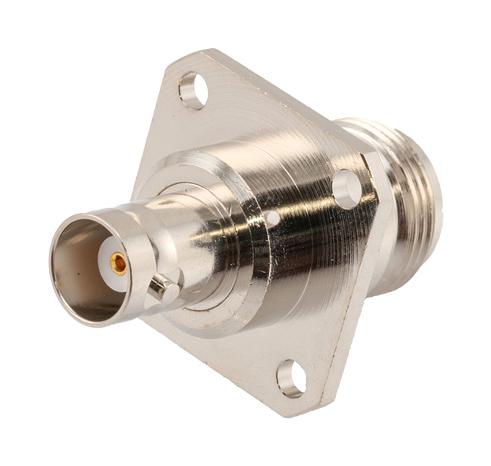

The L-com RF Coaxial Adapter features a straight N Female to BNC Female 4 Hole Flange connection, operating up to 6 GHz with a maximum VSWR of 1.2:1. Made of brass with a nickel finish, it provides a secure, durable interface for RF applications, including equipment output ports and port protection. The N connector has a threaded coupling with a robust center contact, while the BNC has a bayonet mount. Suitable for high-frequency and reliable RF signal connections in various professional and industrial environments.
L-COM LCAD30015 RF Coaxial Adapter Specifications:
- Impedance: 50 Ohm
- Frequency Range: up to 6 GHz
- VSWR: 1.24
- Material: Brass with Nickel finish
- Connector Types: N Female, BNC Female
- Operating Temperature Range: -65°C to +165°C
- Body Length: 1.46 inch (37.08 mm)
- Materials: Beryllium Copper Gold contacts, PTFE insulation
- Outer Conductor: Brass Nickel
- Mounting: 4 Hole Flange
- Environmental Compliance: RoHS
- Operating Voltage: Typical to RF standards
- Center Contact: Gold-plated Beryllium Copper
Buy the Buy Infinite Electronics RF Coaxial Adapter Part Number LCAD30015 Online
Experience the durability and high performance of the Infinite Electronics RF Coaxial Adapter, featuring N Female to BNC Female connections with 4 Hole Flange mount. Designed for reliable operation up to 6 GHz, its brass construction with nickel finish ensures a secure fit and excellent conductivity. Ideal for RF testing, communications, and professional equipment, this versatile adapter offers a robust threaded coupling for N connectors and bayonet mount for BNC connectors. Purchase now for fast delivery and dependable RF signal performance in your applications.
Order your Infinite Electronics LCAD30015 N Female to BNC Female 4 Hole Flange Adapter today and ensure reliable, high-frequency RF connections in your technical projects.
Frequently Asked Questions
Where can I buy L-COM LCAD30015?
You can click on the BUY or RFQ button to purchase LCAD30015 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCAD30015?
You can download the LCAD30015 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCAD30015?
L-COM
